| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16 pcs
|
16 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Circuit | |
| Current | |
| Height | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operate Range | |
| Operate Time | |
| Operating Temperature | |
| Power | |
| Release Time | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage | |
| Width |

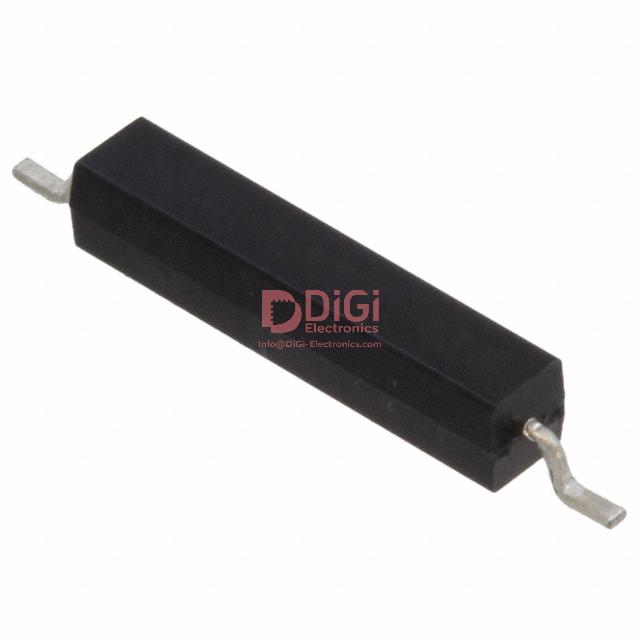

This Littelfuse 59170-1-T-00-D is a molded body reed switch designed for surface mount applications. It operates with a SPST-NO (Single Pole Single Throw Normally Open) circuit configuration.
The switch handles a switching current of 350mA AC or 500mA DC and a maximum switching voltage of 140V AC or 200V DC. The operate range is specified between 15 and 20 AT, with an operate time of 1 ms and a release time of 0.5 ms. Its rated power is 10W.
With a compact size of 11.43mm L x 2.29mm W x 2.29mm H, it is suitable for space-constrained designs. The operating temperature range is -40°C to 125°C. The termination style is Gull Wing, and it is compatible with Cut Tape (CT) and Digi-Reel® packaging.
This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switching current is 350mA (AC) and 500mA (DC).
The maximum switching voltage is 140V AC and 200V DC.
The operate range is between 15 and 20 AT.
The dimensions are 11.43mm L x 2.29mm W x 2.29mm H.
The operating temperature range is -40°C to 125°C.
Yes, it is RoHS3 compliant.
The MSL is 1 Unlimited.
