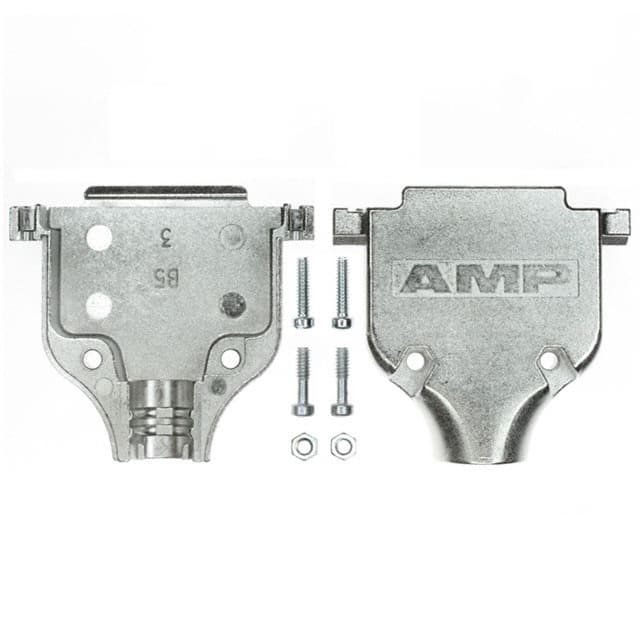

5745173-3 D-Sub backshell for 25-position connectors, 180° cable exit, shielded. Made of metal zinc alloy with nickel over copper plating, includes mating screws and strain relief hardware.
Mfr Part #:

5745173-3

Available from 3 distributors
Mfr Name: TE Connectivity
TE Connectivity
D-Sub backshell for 25-position connectors, 180° cable exit, shielded. Made of metal zinc alloy with nickel over copper plating, includes mating screws and strain relief hardware.
✓ Total Stock: 1,025 pcs

5745173-3 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
885 pcs
On Request
885 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
101 pcs
On Request
101 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
39 pcs
On Request
39 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5745173-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Number of Positions
Plating
SVHC Present
Shielding
View Similar Products (0)

5745173-3 Description

Short technical summary and product information.

The 5745173-3 is a two-piece D-Sub backshell designed for 25-position connectors, providing cable exit at 180° for straight cable routing. The backshell is shielded to offer EMI protection and is constructed from metal zinc alloy with a nickel over copper plating, giving it a silver finish. It includes assembly hardware with 4-40 mating screws and integrated strain relief for secure cable management. This backshell is suitable for use with round cable types and is RoHS3 compliant, REACH unaffected, with an MSL of 1. It is a mechanical accessory that provides robust support and shielding for D-Sub connector assemblies in various electronic systems.

5745173-3 Quick Information

Product Type: D-Sub Connector Backshell
Canonical Name: D-Sub Backshell, 25 Position, 180° Cable Exit, Shielded, for Round Cable
Subcategory: Backshells, Hoods

5745173-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

5745173-3 Features

  • Shielded two-piece D-Sub backshell design.
  • 25 positions with 180° cable exit angle.
  • Metal zinc alloy with nickel plating.
  • Includes 4-40 mating screws and strain relief.
  • Compatible with round cable types.

5745173-3 Applications

  • EMI shielding for D-Sub connector assemblies.
  • Cable strain relief for industrial applications.
  • Used in data communication equipment.
  • Suitable for harsh environment connectivity.

5745173-3 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does this backshell support?

This backshell supports 25 positions.

What is the cable exit angle of this backshell?

The cable exit angle is 180°.

Is this backshell shielded?

Yes, it is shielded for EMI protection.

What material is the backshell made of?

It is made of metal zinc alloy.

What plating is used on the backshell?

The plating is nickel over copper.

5745173-3 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
5745173-4
5745173-4
TE Connectivity
TE Connectivity 5745173-4 is a two-piece shielded D-Sub backshell for 25-position connectors with a 180° cable exit. It features a zinc alloy construction with nickel over copper plating and includes mating screws and strain relief hardware.
