Mfr Part #:

5745173-4

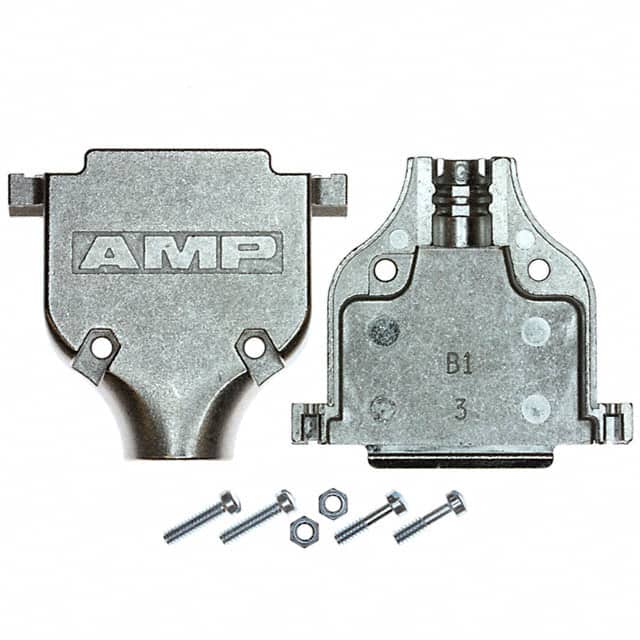

TE Connectivity 5745173-4 is a two-piece shielded D-Sub backshell for 25-position connectors with a 180° cable exit. It features a zinc alloy construction with nickel over copper plating and includes mating screws and strain relief hardware.

✓ Total Stock: 35 pcs

$ Price Range: $18.55 - $25.66

5745173-4 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	35 pcs On Request	35 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

5745173-4 Description

Short technical summary and product information.

The TE Connectivity 5745173-4 is a two-piece backshell designed for 25-position D-Sub connectors. It provides a 180° cable exit and is shielded to help protect against electromagnetic interference. The backshell is constructed from zinc alloy with nickel over copper plating, offering a durable and corrosion-resistant enclosure.

This backshell includes assembly hardware and strain relief, and features 4-40 mating screws for secure attachment. It is designed for use with round cables, making it suitable for a variety of D-Sub cable assembly applications.

The silver-colored finish provides a professional appearance and complements standard D-Sub connector systems. The two-piece design allows for easy installation and access to the connector terminations.

This product falls under the D-Sub, D-Shaped Connector Backshells, Hoods category and is commonly used in industrial, telecommunications, and data communication equipment where reliable cable management and shielding are required.

5745173-4 Quick Information

Product Type: D-Sub Backshell

Canonical Name: D-Sub Backshell, 25 Position, 180° Cable Exit, Shielded

Subcategory: Backshells, Hoods

5745173-4 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

5745173-4 Estimated Pricing

Qty	Low	High
1+	$25.66	$25.66
10+	$21.82	$21.82
25+	$20.45	$20.45
50+	$19.47	$19.47
100+	$18.55	$18.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

5745173-4 Features

Two-piece shielded backshell for D-Sub connectors.
25-position design with 180° cable exit.
Zinc alloy construction with nickel plating.
Includes 4-40 mating screws and strain relief.
Designed for round cable applications.

5745173-4 Applications

Ideal for shielding D-Sub cable assemblies.
Used in industrial control and instrumentation.
Suitable for data communication equipment.
Provides strain relief for round cables.

5745173-4 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this backshell support?

This backshell is designed for 25-position D-Sub connectors.

What type of backshell is this?

This is a two-piece backshell.

What is the cable exit angle?

The cable exit is 180°.

Is this backshell shielded?

Yes, this backshell is shielded.

What material is the backshell made of?

The backshell is made of metal, specifically zinc alloy.

What plating is applied to the backshell?

The plating is nickel over copper.

What hardware is included with this backshell?

The backshell includes assembly hardware, strain relief, and mating screws 4-40.

Category	D-Sub, D-Shaped Connector Backshells, Hoods
Manufacturer Name	TE Connectivity
Accessory Type	Two Piece Backshell
Cable Exit	180°
Cable Type	Round
Color	Silver
Features	Mating Screws 4-40
Hardware	Assembly Hardware, Strain Relief
Material	Metal, Zinc Alloy
Number of Positions	25
Plating	Nickel over Copper
SVHC Present	Not Present
Shielding	Shielded
Tape & Reel	No
