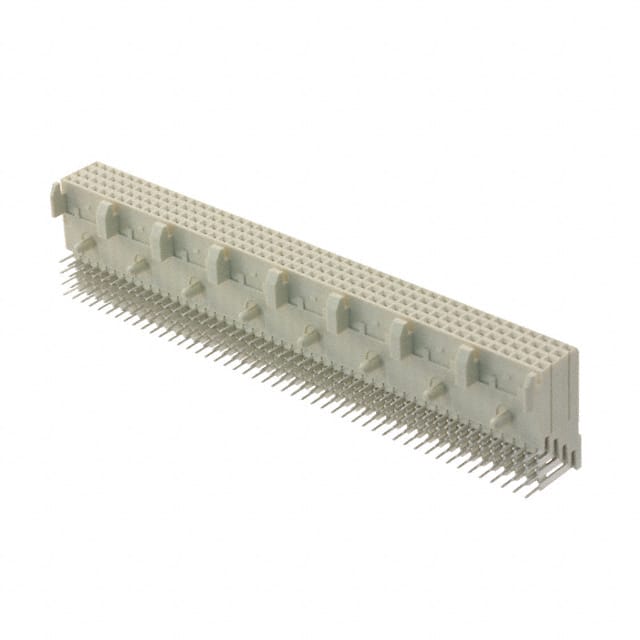

The TE Connectivity 5536507-4 is a Futurebus+ backplane receptacle connector from the Z-PACK series. It features 192 signal positions arranged in 4 rows with a 2.00mm pitch, enabling high-density interconnections in backplane systems. The connector uses a right-angle board edge through-hole mounting style with solder termination for secure attachment. Contacts are gold-plated to ensure reliable signal integrity and corrosion resistance. The housing is natural in color and includes board guide and spacer features for proper alignment during mating. This connector is designed for use in high-speed digital backplane applications where space and signal density are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $30.23 | $30.23 |
| 12+ | $25.37 | $25.37 |
| 30+ | $23.78 | $23.78 |
| 54+ | $22.81 | $22.81 |
| 102+ | $21.81 | $21.81 |
| 252+ | $20.47 | $20.47 |
| 504+ | $19.49 | $19.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 192 positions, all loaded.
The pitch is 2.00mm (0.079 inches).
Board edge, through hole, right angle mounting with solder termination.
It has 4 rows.
The contact finish is gold.
It includes a board guide and spacer.
It is a receptacle with female sockets.
