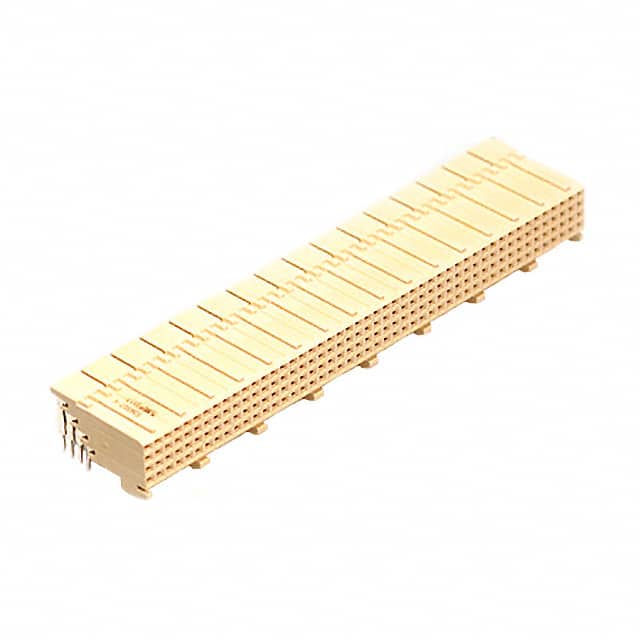

The TE Connectivity 536507-4 is a Futurebus receptacle connector designed for high-density backplane applications. It features 192 positions arranged in 4 rows with a 2.00mm pitch, providing a compact signal interface. The connector uses female socket contacts with a gold finish, ensuring reliable electrical performance and corrosion resistance.
Mounting is via board edge, through hole, right angle configuration with solder termination, suitable for press-fit or wave soldering processes. The part includes a board guide and spacer for accurate alignment and secure mating. It is pin-in-paste capable up to 260°C, making it compatible with reflow soldering.
This connector is not RoHS compliant due to lead content, but is halogen free with low halogen levels (Br, Cl, F, I < 900 ppm per homogenous material). It is also free of BFR, CFR, and PVC. The part is currently superseded according to the manufacturer's compliance statement.
192 positions, all loaded.
2.00mm (0.079 inches).
Board edge, through hole, right angle.
4 rows.
Gold.
Yes, it is pin-in-paste capable to 260°C.
No, it is not RoHS compliant due to lead content.
