| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,368 pcs
|
1368 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
312 pcs
|
312 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Termination |

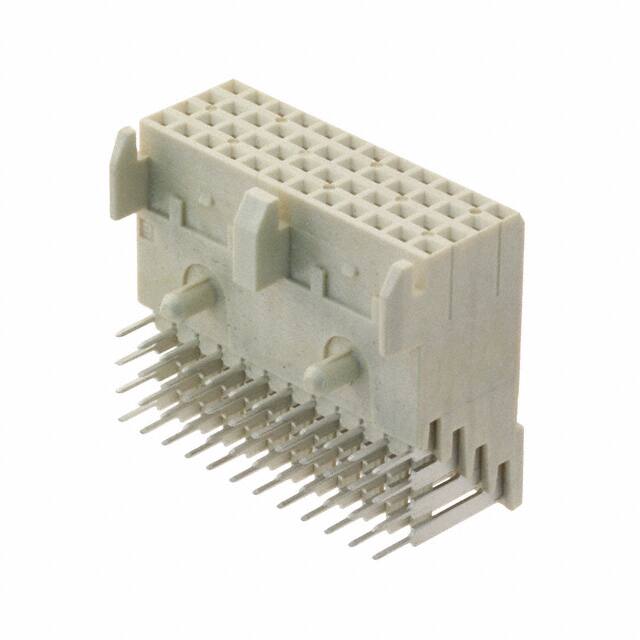

The TE Connectivity 5536507-2 is a Futurebus receptacle connector designed for high-density backplane applications. It offers 48 positions arranged in 4 rows with a 2.00mm pitch, providing a compact interconnect solution. The connector features a board edge, through hole, right angle mounting style with solder termination, ensuring reliable mechanical and electrical attachment to the PCB.
Gold contact finish provides excellent conductivity and corrosion resistance. The connector includes a board guide and spacer for accurate alignment during assembly. It is Pin-in-Paste capable up to 260°C, making it suitable for lead-free reflow soldering processes. The part is compliant with EU RoHS, EU ELV, China RoHS 2, and EU REACH regulations, and has low halogen content (Br, Cl, F, I < 900 ppm per homogenous material).
This connector is ideal for use in telecommunications, data networking, and industrial control systems where reliable high-speed signal transmission is required. The all positions loaded design ensures full functionality without unpopulated contacts.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.83 | $9.83 |
| 24+ | $7.85 | $7.85 |
| 48+ | $7.48 | $7.48 |
| 72+ | $7.27 | $7.27 |
| 120+ | $7.01 | $7.01 |
| 264+ | $6.63 | $6.63 |
| 504+ | $6.34 | $6.34 |
| 1,008+ | $6.03 | $6.03 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
48 positions.
2.00mm (0.079").
Board Edge, Through Hole, Right Angle.
Gold.
Solder.
Yes, Pin-in-Paste capable to 260°C.
Low Halogen - Br, Cl, F, I < 900 ppm per homogenous material.
