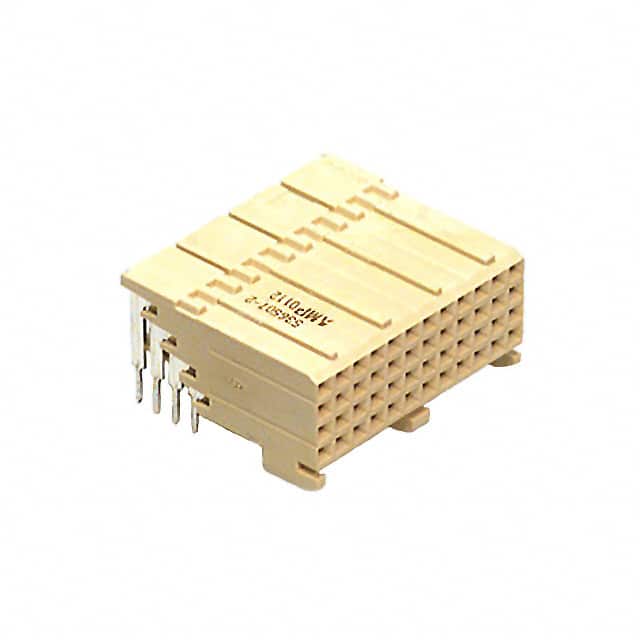

The TE Connectivity 536507-2 is a Futurebus receptacle connector designed for backplane applications. It offers 48 positions with female socket contacts arranged in 4 rows at a 2.00mm pitch. The connector is configured for board edge mounting with right angle through hole solder termination, making it suitable for dense PCB layouts where space is constrained.
This connector features gold plated contacts for reliable signal integrity and corrosion resistance. It includes a board guide and spacer for accurate alignment during assembly. The housing is natural in color and the part is rated as Pin-in-Paste capable to 260°C, supporting lead-free reflow processes.
Please note that this part has a superseded status and is not compliant with EU RoHS or EU ELV directives due to the presence of lead. It is classified as low halogen with Br, Cl, F, I each below 900 ppm and is BFR/CFR/PVC free.
The connector has 48 positions, all loaded.
The pitch is 2.00mm (0.079 inches).
Board edge, through hole, right angle mounting with solder termination.
No, it is not compliant with EU RoHS Directive 2011/65/EU due to the presence of lead.
The contacts have a gold finish.
It includes a board guide and spacer.
Pin-in-Paste capable to 260°C.
