| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
89 pcs
|
89 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | UNK | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Lens Size | |
| Lens Style | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Viewing Angle | |
| Voltage Rating | |
| Wavelength |

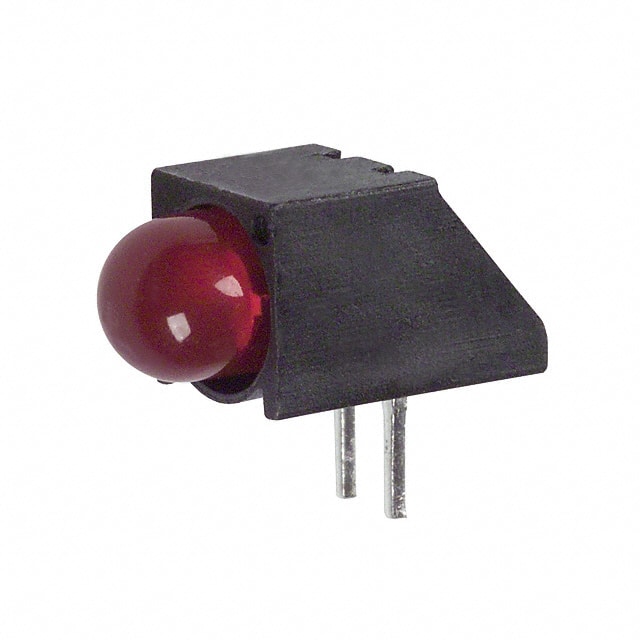

This Dialight 5500407 is a single, red LED circuit board indicator designed for through-hole mounting with a right-angle orientation. It features a 5mm diffused lens and a round, domed top style. The LED operates with a typical forward voltage of 2V and a current of 20mA, producing a luminous intensity of 12.3mcd. Its viewing angle is 60 degrees, and it emits light with a peak wavelength of 635nm.
The component is suitable for various PCB applications where a visual indicator is required. Its right-angle mounting allows for efficient use of space on circuit boards. The diffused lens ensures a wide, uniform light output. The series is identified as 550.
This part is specified with a RoHS3 compliant status and an MSL of 1. It is designed for direct insertion into printed circuit boards, making it a versatile component for electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical operating voltage for the Dialight 5500407 LED is 2V.
The typical luminous intensity rating for the 5500407 LED is 12.3mcd.
The Dialight 5500407 LED has a typical viewing angle of 60 degrees.
The 5500407 LED emits red light.
The Dialight 5500407 LED is designed for through-hole mounting with a right-angle orientation.
