| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
467 pcs
|
467 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Housing Material | |
| Lens Size | |
| Lens Style | |
| Lens Type | |
| Millicandela Rating | |
| Mounting Type | |
| Viewing Angle | |
| Voltage Rating | |
| Wavelength |

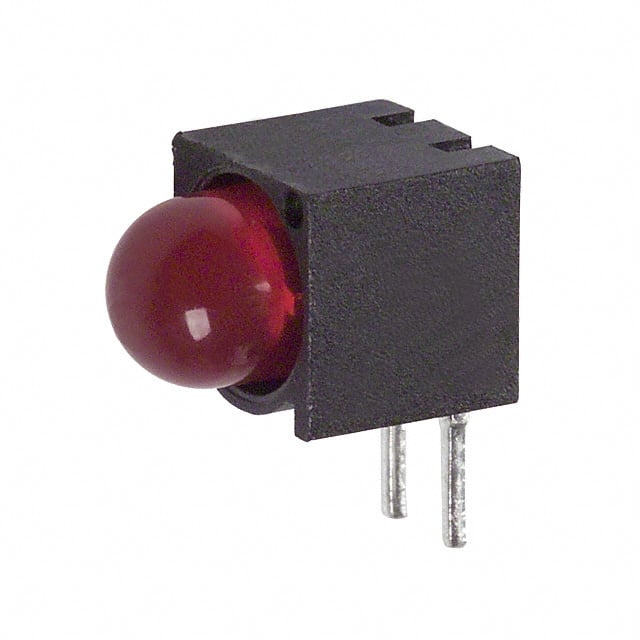

The Dialight 5500405 is a red LED designed for use as a circuit board indicator. It features a 5mm lens size with a diffused, round, domed top style. The LED is mounted via a through-hole, right-angle configuration, suitable for direct PCB integration.
This component operates with a typical forward voltage of 2V and a current rating of 20mA, providing a luminous intensity of 12.3mcd. The peak wavelength for the red light emitted is 635nm, with a typical viewing angle of 60 degrees.
The housing is constructed from PBT material and is UL 94 V-0 rated for flammability. It also has an oxygen index of 32%. The stand-offs on the housing facilitate PCB cleaning. Solderability meets MIL-STD-202F, method 208F, and the LEDs are safe for direct viewing per IEC 825-1 and EN-60825-1 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Dialight 5500405 LED is red.
The typical forward voltage for the 5500405 LED is 2V.
The typical luminous intensity of the 5500405 LED is 12.3mcd.
The peak wavelength of the red light from the 5500405 LED is 635nm.
The typical viewing angle of the Dialight 5500405 LED is 60 degrees.
The Dialight 5500405 LED is mounted using a through-hole, right-angle configuration.
The 5500405 LED has a diffused lens with a round, domed top style.
