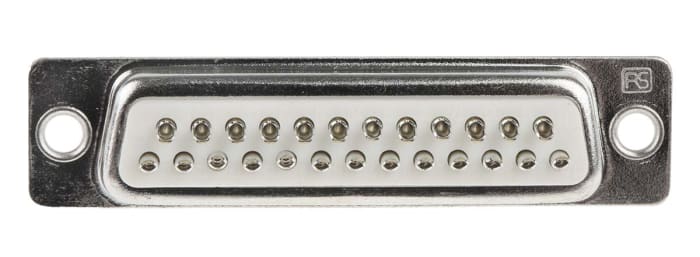

544-3828 This RS PRO D-Sub connector features 25 contacts in a straight configuration with solder cup terminations. It is designed for panel mounting and offers a robust steel housing.
Mfr Part #:

544-3828

Available from 1 distributors
Mfr Name: RS COMPONENTS
RS COMPONENTS
This RS PRO D-Sub connector features 25 contacts in a straight configuration with solder cup terminations. It is designed for panel mounting and offers a robust steel housing.
✓ Total Stock: 5 pcs
$ Price Range: $6.79

544-3828 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

544-3828 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Material
Contact Plating
Current
Housing Material
Number of Contacts
Orientation
Pitch
Shell Size
Voltage
View Similar Products (0)

544-3828 Description

Short technical summary and product information.

The RS PRO 544-3828 is a 25-way D-Sub connector designed for reliable I/O interconnections in industrial and commercial applications. It features a straight orientation and a panel mount type with 3.05 mm through-hole mounting hardware.



The connector has gold-plated brass contacts and a durable steel housing, ensuring good conductivity and EMI/RFI protection. The termination style is solder, facilitating easy wire connections. It operates within a temperature range of -55°C to 105°C and is rated for 500V.



This D-Sub connector is suitable for various applications requiring robust data and power connections between devices. Its design ensures correct orientation during mating and provides mechanical support.

544-3828 Quick Information

Product Type: D-Sub Connector
Canonical Name: RS PRO 25 Way Straight D-Sub Connector
Subcategory: D-Sub Connectors

544-3828 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

544-3828 Estimated Pricing

Qty Low High
1+ $6.79 $6.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

544-3828 Features

  • 25-way D-Sub connector for I/O interconnections.
  • Straight orientation with panel mount capability.
  • Solder cup terminations for easy wire connection.
  • Durable steel housing with gold-plated brass contacts.
  • Wide operating temperature range of -55°C to 105°C.

544-3828 Applications

  • Ideal for industrial control systems.
  • Suitable for data communication ports.
  • Used in commercial equipment interfaces.
  • Provides reliable power interconnections.

544-3828 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the number of contacts on this D-Sub connector?

This D-Sub connector has 25 contacts.

What is the operating temperature range for this connector?

The operating temperature range is -55°C to 105°C.

What type of termination does the RS PRO 544-3828 use?

The connector uses solder cup terminations.

What is the voltage rating of this D-Sub connector?

The voltage rating is 500V.

What is the pitch between contacts on this connector?

The pitch is 2.77mm.

What is the current rating for this D-Sub connector?

The current rating is 5A.

544-3828 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
544-3806
544-3806
RS COMPONENTS
This RS PRO D-Sub connector features 25 contacts in a straight configuration, suitable for panel mounting. It offers a 5A current rating and 500V voltage rating.
