| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Country of Origin | |
| Current | |
| Housing Material | |
| Mounting Type | |
| Number of Contacts | |
| Orientation | |
| Pitch | |
| Product Type | |
| Shell Size | |
| Voltage |

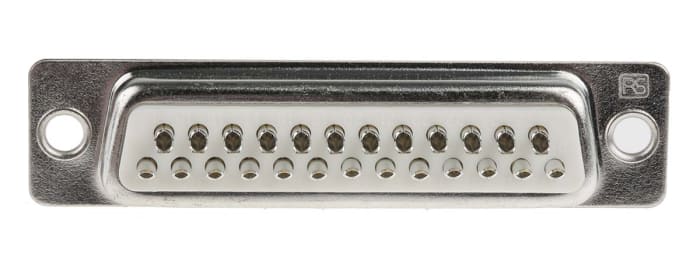

The RS PRO 544-3806 is a 25-way D-Sub connector with a straight orientation, designed for panel mounting applications. It features a robust steel shell and gold-plated brass contacts with solder cup terminations for easy wire connection.
This connector operates within a temperature range of -55°C to 105°C and has a voltage rating of 500V, with a current rating of 5A. The pitch between contacts is 2.77mm, and it utilizes a B shell size with 3.05mm through-hole mounting hardware.
Ideal for industrial and commercial I/O interconnections, this D-Sub connector provides reliable performance. Its durable construction ensures good EMI/RFI protection, making it suitable for communications and network ports.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector is rated for 500V.
It has 25 contacts.
It is designed for panel mounting.
The housing material is steel.
Contacts are made of brass with gold plating.
The operating temperature range is from -55°C to 105°C.
