| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | 0949 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Height Above Board | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

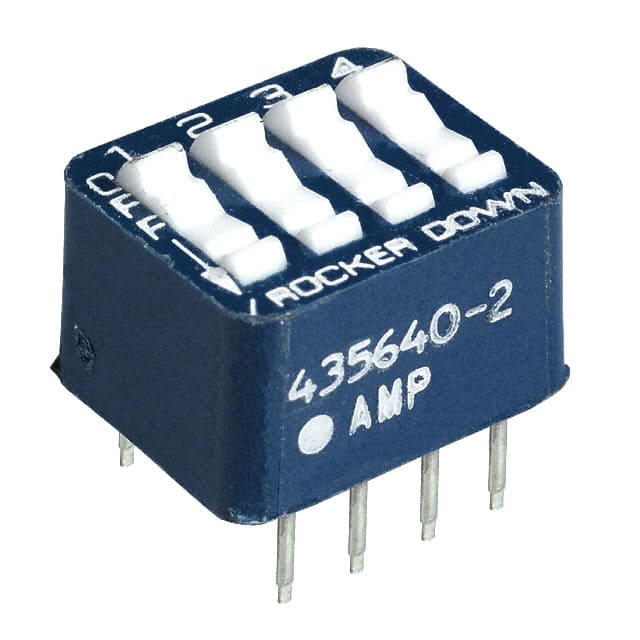

This TE Connectivity 5435640-2 is a single pole, single throw (SPST) DIP switch featuring a rocker actuator. It offers 4 positions and is designed for through-hole mounting with a PC pin termination style and gold contact finish. The switch is rated for 5VDC and a current of 60mA. It operates within a temperature range of -55°C to 105°C.
The component has a pitch of 2.54mm and a height above the board of 8.64mm. The contact material is copper alloy. This DIP switch is not washable.
It is suitable for applications requiring reliable switching in a compact form factor. The through-hole mounting ensures secure placement on printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 5VDC.
The operating temperature range is -55°C to 105°C.
It supports through-hole mounting.
The current rating is 60mA.
It has 4 positions.
