Mfr Part #:

54-00301

Name: 54-00301
Brand: Tensility International
SKU: 54-00301

Description:

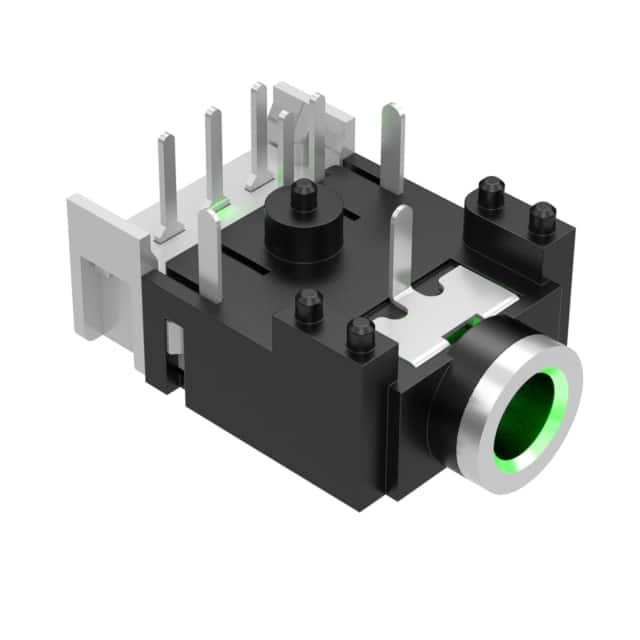

CONN JACK 3COND 3.5MM LED R/A

Stock on Request

54-00301 Description

Short technical summary and product information.

CONN JACK 3COND 3.5MM LED R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

54-00306

Tensility International

CONN JACK 3COND 3.5MM LED R/A

54-00307

Tensility International

CONN JACK 3COND 3.5MM LED R/A

Category	Audio Connectors
Manufacturer Name	Tensility International
Actual Diameter	0.139" (3.53mm)
Connector Type	Phone Jack
Features	Board Guide, LED
Gender	Female
Industry Recognized Mating Diameter	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Insulation Color	Black
Internal Switch(s)	Single Switch
Mounting Type	Through Hole, Right Angle
Number of Positions	3 Conductors, 6 Contacts
Operating Temperature	-55°C ~ 85°C
Shielding	Unshielded
Signal Lines	Stereo (3 Conductor, TRS)
Termination	Solder
