Mfr Part #:

54-00298

Name: 54-00298
Brand: Tensility International
SKU: 54-00298

Description:

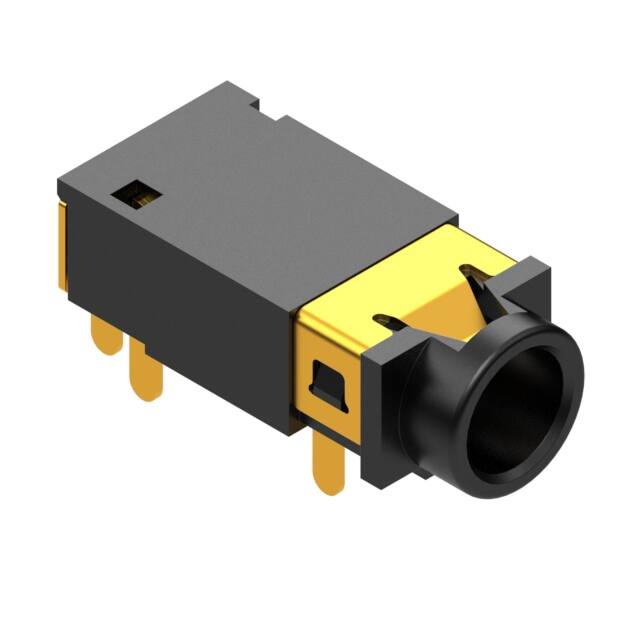

CONN JACK 4COND 3.5MM R/A

Stock on Request

54-00298 Description

Short technical summary and product information.

CONN JACK 4COND 3.5MM R/A

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Audio Connectors
Manufacturer Name	Tensility International
Actual Diameter	0.142" (3.60mm)
Connector Type	Phone Jack
Gender	Female
Industry Recognized Mating Diameter	3.50mm (0.141", 1/8", Mini Plug) - Headphone
Insulation Color	Black
Internal Switch(s)	Two Switches
Mounting Type	Through Hole, Right Angle
Number of Positions	4 Conductors, 6 Contacts
Operating Temperature	-40°C ~ 105°C
Shielding	Unshielded
Signal Lines	Stereo (4 Conductor, TRRS)
Termination	Solder
