| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Features | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

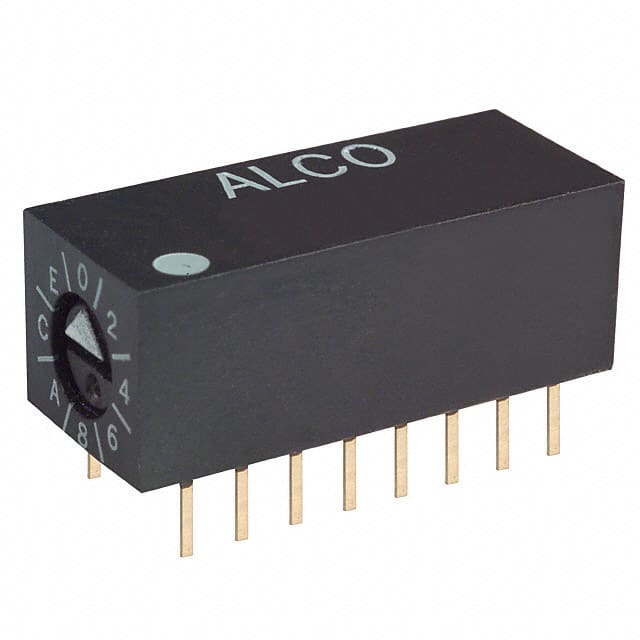

The TE Connectivity 53137-5 is a 16-position DIP switch designed for through-hole, right-angle mounting. It features a Hexadecimal with Complement circuit and a rotary actuator operable by tool.
This switch has a current rating of 100mA at 28VDC and a contact finish of Gold over Phosphor Bronze. The pitch is 2.54mm (0.100"). The height above the board is 9.14mm (0.360"). It is sealed and not washable.
The RoHS status is RoHS3 Compliant, Moisture Sensitivity Level is 1 Unlimited, and REACH status is Unaffected. These compliance details are based on available data and may require verification.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 53137-5 DIP switch has 16 positions.
The 53137-5 features a Hexadecimal with Complement circuit.
The voltage rating is 28VDC.
The current rating is 100mA.
The 53137-5 DIP switch is mounted through hole at a right angle.
The termination style is PC Pin.
The RoHS status is RoHS3 Compliant.
