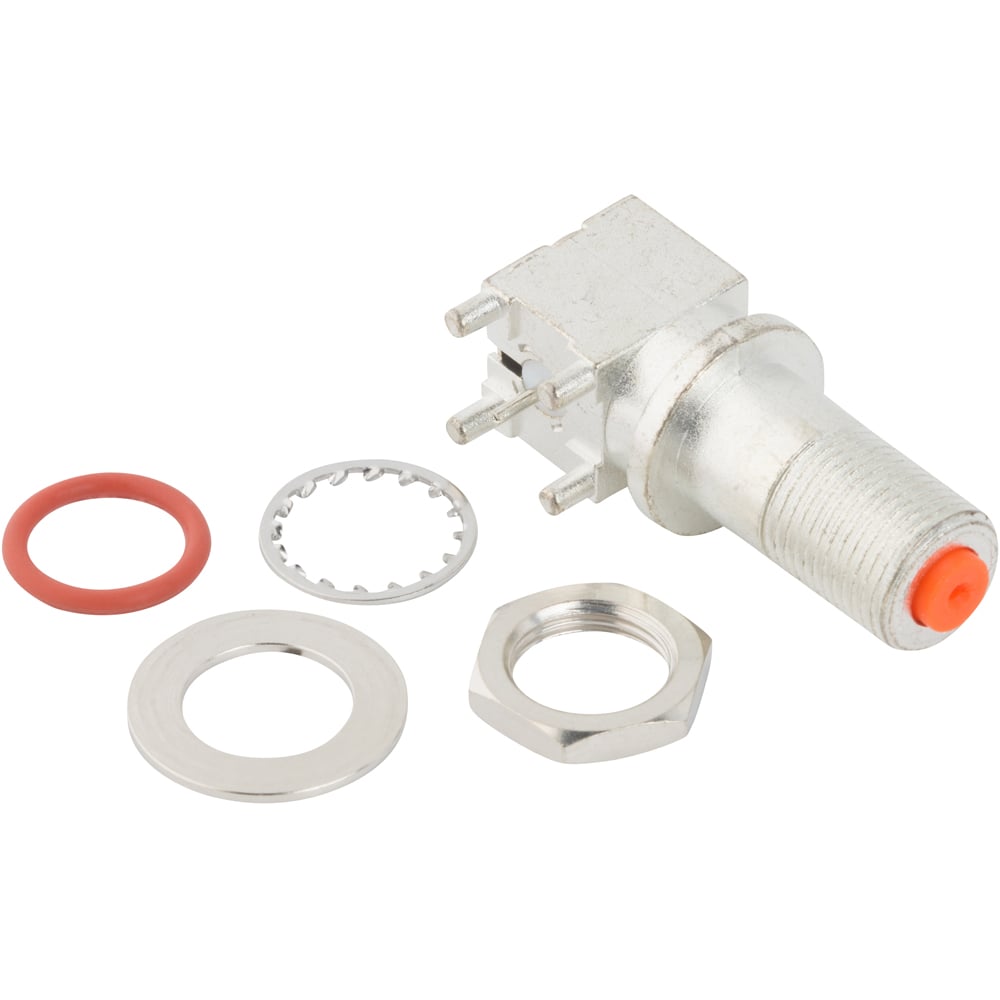

This F Type jack connector from Amphenol RF features a right angle PCB mount design with threaded coupling and IP67 moisture seal. It operates from DC to 2.15 GHz with 75 Ohm nominal impedance. Electrical performance includes VSWR of 1.43 max at 1 GHz and 1.93 max at 2.15 GHz, with insertion loss of 0.2 dB and 0.46 dB respectively. The connector is rated for 3 A current. Construction uses a zinc die-cast body with tin plating, phosphor bronze center and lockwasher contacts, PTFE insulator, and silicone rubber membrane seal. It is designed for panel mounting with a bulkhead front side nut and through-hole solder termination. Suitable for outdoor and indoor RF applications requiring reliable moisture protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.00 | $13.00 |
| 10+ | $11.04 | $11.04 |
| 25+ | $10.35 | $10.35 |
| 50+ | $9.86 | $9.86 |
| 100+ | $9.39 | $9.39 |
| 300+ | $8.69 | $8.69 |
| 500+ | $8.38 | $8.38 |
| 1,000+ | $7.98 | $7.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
75 Ohm nominal.
DC to 2.15 GHz.
VSWR max 1.43 at 1 GHz and 1.93 at 2.15 GHz; insertion loss max 0.2 dB at 1 GHz and 0.46 dB at 2.15 GHz.
IP67 - dust tight and waterproof.
-65 to +165 °C.
Panel mount, through hole, right angle, with bulkhead front side nut.
3 A maximum.
