| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

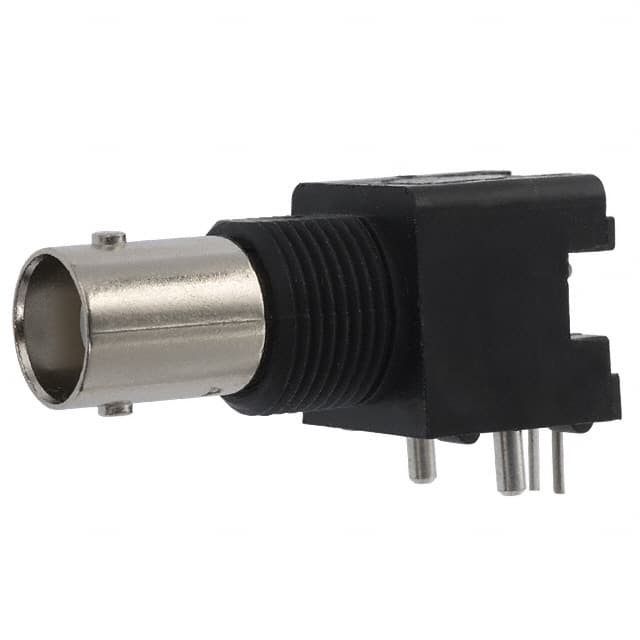

This TE Connectivity 5227161-2 is a BNC coaxial connector assembly featuring a female socket (jack) interface with a 50 Ohm impedance rating. It is designed for right-angle mounting on a PCB with through-hole solder termination for both the center contact and shield. The connector supports frequencies up to 4 GHz and uses a bayonet lock fastening mechanism for secure mating.
The housing is available in black and silver, and the center contact is made of phosphor bronze. The mounting feature is bulkhead with a front side nut, and the connector includes a board guide and is isolated. This part is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $4.67 | $4.67 |
| 10+ | $3.97 | $3.97 |
| 35+ | $3.63 | $3.63 |
| 70+ | $3.46 | $3.46 |
| 105+ | $3.36 | $3.36 |
| 280+ | $3.13 | $3.13 |
| 525+ | $3.00 | $3.00 |
| 1,015+ | $2.86 | $2.86 |
| 2,520+ | $2.68 | $2.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
4 GHz.
Panel mount, through hole, right angle with bulkhead front side nut.
Bayonet lock.
Solder termination for both center contact and shield.
