| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

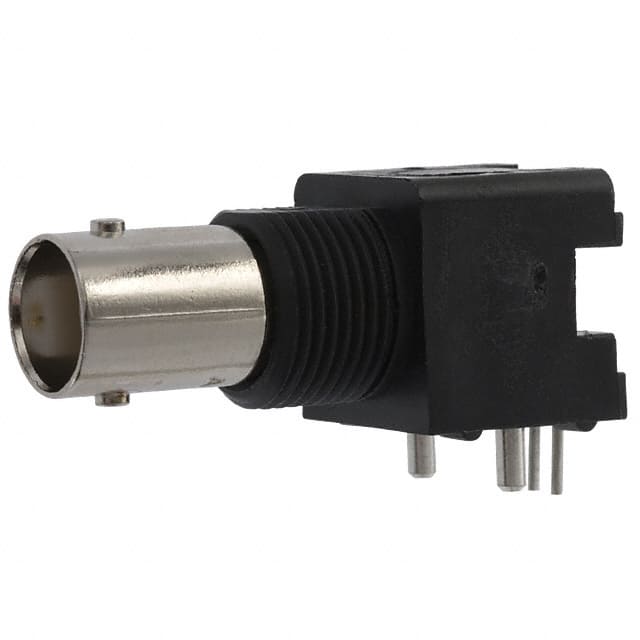

The 227161-6 is a BNC coaxial connector from TE Connectivity, designed as a jack with a female socket. It features a right-angle orientation and is intended for panel mount installation via a bulkhead with a front side nut. The connector offers 50 Ohm impedance and supports frequencies up to 4 GHz, making it suitable for RF communication systems.
Electrical performance is ensured by the bayonet lock fastening mechanism and solder terminations for both contact and shield. The center contact is made of phosphor bronze, providing reliable conductivity. The housing is available in black and silver colors.
This connector includes board guide and isolated features, which aid in alignment and prevent electrical interference. It is RoHS3 compliant and REACH unaffected, suitable for environmentally conscious designs.
50 Ohm.
Up to 4 GHz.
Panel mount, through hole, right angle.
BNC.
Solder for both contact and shield.
Yes, RoHS3 Compliant.
Board guide and isolated.
