| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With |

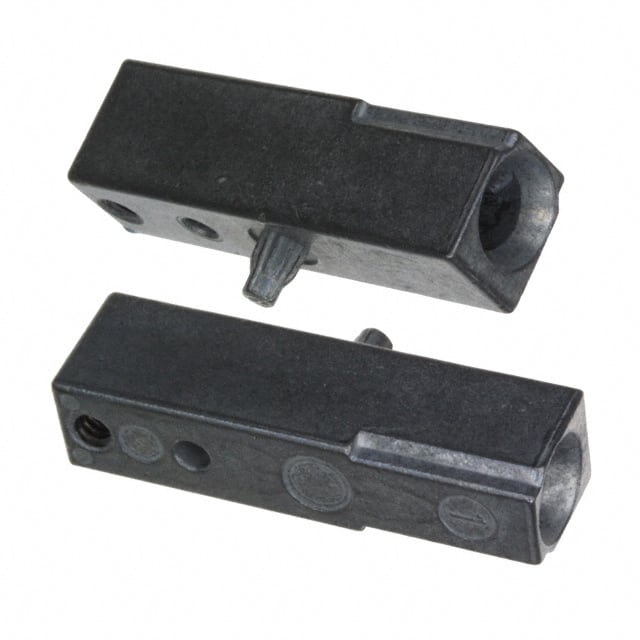

The 5223986-1 is a guide module accessory manufactured by TE Connectivity for use with UPM Series backplane connectors. It features a keyed design and right-angle orientation with 4-40 thread, ensuring proper alignment and mating. As a mechanical accessory, it aids in guiding connector halves during engagement, reducing insertion force and preventing damage. The module is designed for integration into backplane connector systems, typical in telecommunications and data center equipment. Please refer to the manufacturer's documentation for detailed mounting instructions and material specifications.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.02 | $7.02 |
| 10+ | $5.96 | $5.96 |
| 25+ | $5.59 | $5.59 |
| 50+ | $5.32 | $5.32 |
| 100+ | $5.07 | $5.07 |
| 250+ | $4.75 | $4.75 |
| 500+ | $4.52 | $4.52 |
| 1,000+ | $4.31 | $4.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a Guide Module.
The UPM Series from TE Connectivity.
4-40 thread.
Yes, it has a keyed design.
Right angle.
RoHS3 compliant, REACH Unaffected, and MSL Level 1 (unverified).
