| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,285 pcs
|
9285 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| For Use With | |
| Tape & Reel |

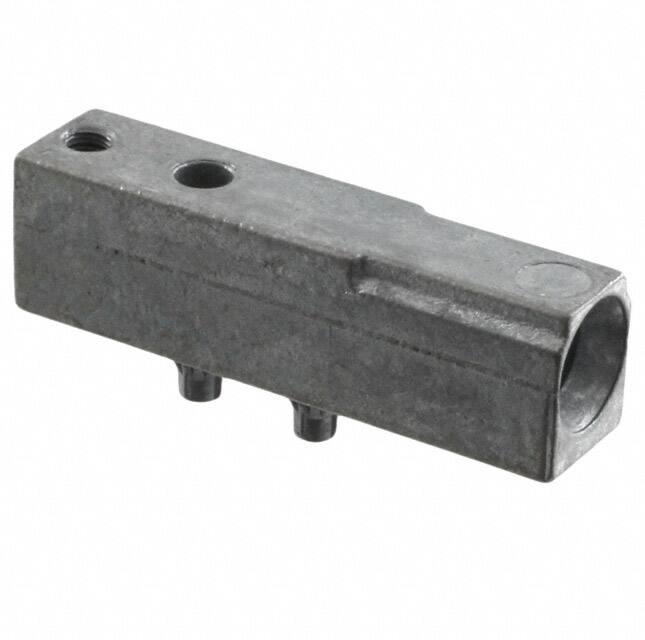

TE Connectivity 5223979-1 is a guide module accessory designed for use with UPM series backplane connectors. As a right-angle guide module, it helps ensure proper alignment during connector mating, reducing the risk of damage to contacts and housings in dense backplane systems.
The accessory type is Guide Module and it is specifically intended for UPM Series backplane connector systems. The part carries RoHS3 compliance and MSL 1 (unlimited) moisture sensitivity ratings as listed in the existing product data.
This guide module belongs to the Backplane Connector Accessories category, serving as a mechanical alignment aid in high-density backplane applications. It is particularly useful in blind-mating environments where connector alignment cannot be visually confirmed.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.31 | $9.31 |
| 10+ | $8.30 | $8.30 |
| 25+ | $7.78 | $7.78 |
| 50+ | $7.40 | $7.40 |
| 100+ | $7.05 | $7.05 |
| 250+ | $6.61 | $6.61 |
| 500+ | $6.26 | $6.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5223979-1 is a Guide Module accessory.
It is designed for use with UPM Series backplane connectors.
Yes, the product introtext indicates it is a right-angle (RT ANG) guide module.
The part is listed as RoHS3 compliant in the existing database, though unverified.
The MSL is 1 – Unlimited as listed (unverified).
