Mfr Part #:

5205817-8

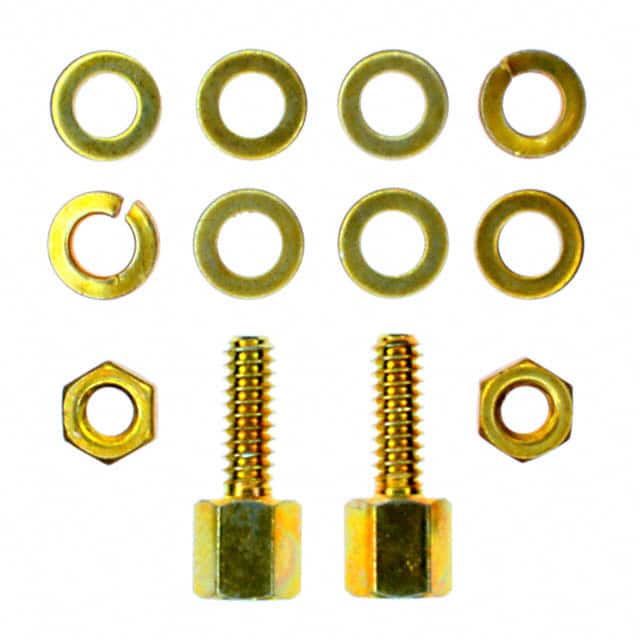

D-Sub jackscrew socket from TE Connectivity with 4-40 thread and 7.92mm length. Designed for use with AMPLIMITE Series HDF and HDP connectors.

✓ Total Stock: 562 pcs

5205817-8 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	562 pcs On Request	562 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

5205817-8 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	D-Sub, D-Shaped Connector Jackscrews
Manufacturer Name	TE Connectivity
Accessory Type	Jackscrew Socket
Features	Hardware Included
For Use With	AMPLIMITE Series HDF, HDP
Length	7.92mm (0.312")
Tape & Reel	No
Thread Size	4-40 Socket, 4-40 Screw

View Similar Products (0)

5205817-8 Description

Short technical summary and product information.

This is a jackscrew socket accessory for D-Sub connectors, manufactured by TE Connectivity. It features a 4-40 socket and screw thread with a length of 7.92mm (0.312 inches). Hardware is included for installation. The part is designed for use with TE Connectivity's AMPLIMITE Series HDF and HDP connectors. It is RoHS3 compliant (unverified) and has an MSL of 1 Unlimited. As a mechanical accessory, it provides secure fastening for D-Sub connections in panel mount or cable applications. No electrical ratings apply.

5205817-8 Quick Information

Product Type: Jackscrew Socket

Canonical Name: D-Sub Jackscrew Socket, 4-40 Thread, 7.92mm Length, for AMPLIMITE HDF/HDP

Subcategory: D-Sub Hardware

5205817-8 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Non-Compliant

5205817-8 Features

Jackscrew socket for D-Sub connectors.
4-40 socket and screw thread.
7.92mm (0.312 inch) length.
Hardware included for easy installation.
Compatible with AMPLIMITE HDF/HDP series.

5205817-8 Applications

Secures D-Sub connectors in panel mounts.
Used with AMPLIMITE HDF/HDP connectors.
Ideal for cable-to-panel connections.
Provides reliable mechanical retention.

5205817-8 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the thread size?

4-40 socket and 4-40 screw.

What is the length of the jackscrew?

7.92mm (0.312 inches).

Which connectors is this jackscrew socket compatible with?

AMPLIMITE Series HDF and HDP connectors.

Is hardware included?

Yes, hardware included.

What type of accessory is this?

Jackscrew socket.

Is the part RoHS compliant?

RoHS3 compliant (unverified).

What is the moisture sensitivity level?

MSL 1 Unlimited.
