| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Bushing Material | |
| Cable Diameter (Maximum @ Maximum) | |
| Cable Diameter (Minimum @ Minimum) | |
| Color | |
| Halogen Free | |
| Ingress Protection | |
| Insert Material | |
| Material | |
| Mounting Type | |
| O-Ring Material | |
| Operating Temperature | |
| Outside Cable Diameter (Max) | |
| Outside Cable Diameter (Min) | |
| Overall Length | |
| Standard Package Quantity | |
| Thread Length | |
| Thread Size | |
| Type | |
| Wrenching Flats | |
| operating_temperature (Minimum/Maximum @ dynamic) | |
| operating_temperature (Minimum/Maximum @ static) |

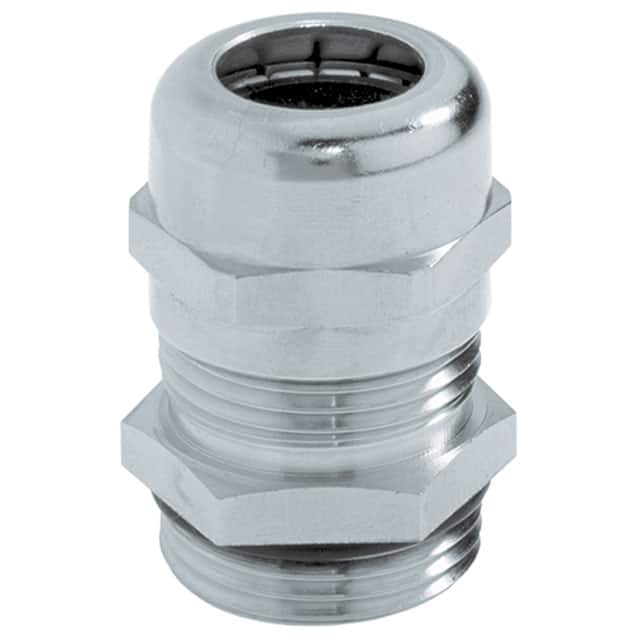

The LAPP 52015710 is a SKINTOP MS PG9 nickel-plated brass cable gland designed for applications requiring high mechanical and chemical stability. It is suitable for use in demanding environments such as chemical industry and measurement and control technology.
Key specifications include a PG9 thread, a clamping range of 4.00 mm to 8.00 mm, and IP68 ingress protection (10 bar with O-ring). The cable gland is made of nickel-plated brass with a polyamide insert, a CR (chloroprene rubber) bushing, and an NBR O-ring. Its static operating temperature range is -40°C to +100°C, and its dynamic range is -25°C to +100°C.
The product has a 17.0 mm wrenching flat and an overall length of 29.0 mm. The standard package quantity is 100 pieces per package.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.72 | $6.72 |
| 10+ | $5.71 | $5.71 |
| 25+ | $5.35 | $5.35 |
| 50+ | $5.10 | $5.10 |
| 100+ | $4.85 | $4.85 |
| 300+ | $4.49 | $4.49 |
| 500+ | $4.33 | $4.33 |
| 1,000+ | $4.13 | $4.13 |
| 2,500+ | $3.87 | $3.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
IP68 (10 bar with O-ring) and NEMA 6P.
4.00 mm (0.157 in) to 8.00 mm (0.315 in).
Static: -40°C to +100°C. Dynamic (moving applications): -25°C to +100°C.
PG9.
Nickel-plated brass.
