| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,106 pcs
|
1106 pcs | On Request | 1 | On Request | On Request | 736 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Lens Size | |
| Lens Style | |
| Mounting Type | |
| Operating Temperature | |
| Type |

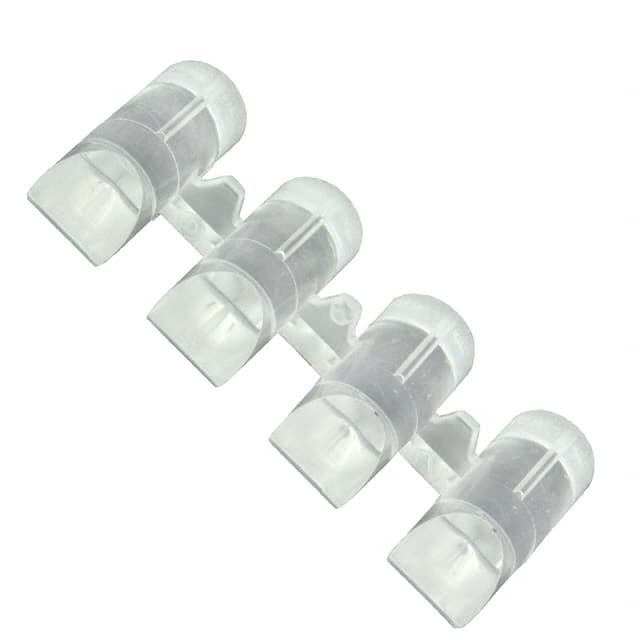

The Dialight 5151040 Optopipe is a panel-mounted optical light pipe with a 4-array configuration. It is constructed from high transmissivity polycarbonate material and secures to the panel via a press-fit mechanism. The light pipe is designed to float above the PCB, ensuring diffused light emitting surfaces appear bright and uniformly illuminated.
Key specifications include a 4mm lens size, a round lens style with a flat top, and a rigid type. The mounting type is panel mount with a press-fit design. This light pipe operates within a temperature range of -30°C to +100°C. It is recommended for use with Dialight's 597 Series PLCC-2 or PLCC-4 Type SMT LEDs, with the light source's emitting surface located no more than 0.020" or 0.5mm from the Optopipe.
The material is rated UL94-V0 and has a 35% oxygen index. The product is classified as REACH Unaffected and has an MSL of 1 Unlimited. The standard package quantity is 25 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -30°C to +100°C.
The mounting type is Panel Mount, Press Fit.
The lens size is 4mm.
The standard package quantity is 25.
