| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,600 pcs
|
13600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
345 pcs
|
345 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

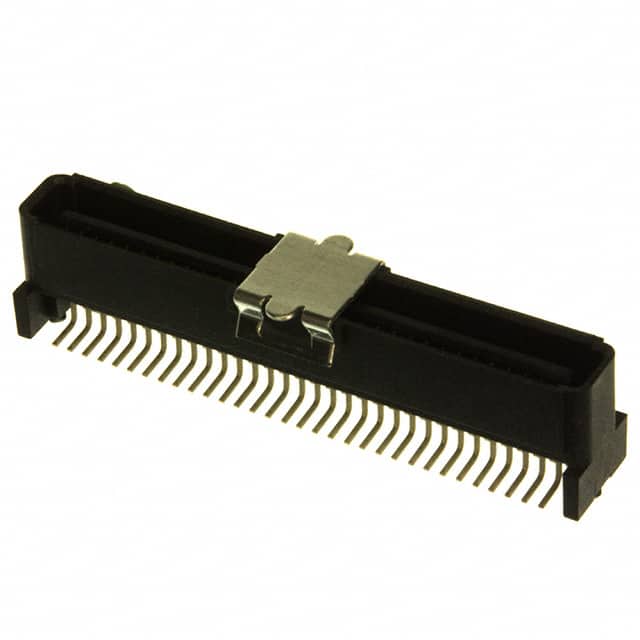

The TE Connectivity 5146888-1 is a 64-position plug connector designed for board-to-board mezzanine applications. It features center strip contacts and a 1.00mm pitch, enabling high-density connections in compact electronic assemblies.
The connector is surface mount compatible and comes with a gold contact finish of 30µin (0.76µm), ensuring reliable electrical performance and corrosion resistance. The mated stacking heights range from 10mm to 15mm, providing flexibility in board spacing.
Key mechanical attributes include a height above board of 0.329 inches (8.35mm) and an integrated board guide for accurate alignment during assembly. The two-row configuration supports efficient signal routing in dense layouts.
This connector is part of TE Connectivity's array connector family, suitable for applications requiring robust and repeatable connections in communications, computing, and industrial electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.97 | $8.97 |
| 10+ | $7.62 | $7.62 |
| 25+ | $7.15 | $7.15 |
| 50+ | $6.81 | $6.81 |
| 100+ | $6.48 | $6.48 |
| 400+ | $5.88 | $5.88 |
| 800+ | $5.60 | $5.60 |
| 1,200+ | $5.44 | $5.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 64 positions.
1.00mm (0.039 inches).
Surface mount.
Gold with 30µin thickness.
10mm, 12mm, 13mm, and 15mm.
Yes, it includes a board guide.
