| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,400 pcs
|
4400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
90 pcs
|
90 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch |

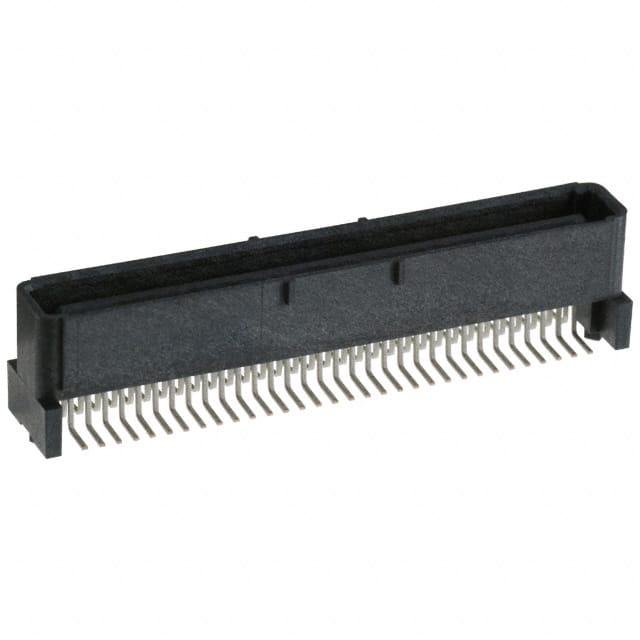

The TE Connectivity 5120527-1 is a 64-position plug connector with center strip contacts, belonging to the mezzanine (board-to-board) array connector category. It features two rows with a 1.00mm (0.039") pitch, enabling high-density interconnections in space-constrained designs. The connector is surface mount, with gold contact finish of 30µin (0.76µm) thickness for reliable signal integrity and corrosion resistance.
The component is designed for mated stacking heights of 10mm, 12mm, 13mm, and 15mm, providing flexibility for various board-to-board spacing requirements. It includes an integrated board guide feature to aid alignment during assembly. The connector height above the board is 0.329" (8.35mm).
This connector is suitable for applications requiring compact, parallel stacking of PCBs, such as in telecommunications, computing, and industrial electronics. The surface mount package supports automated assembly processes. Verified compliance data for RoHS, REACH, and MSL is not available from the existing sources; verification from the manufacturer is recommended.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.42 | $8.42 |
| 10+ | $7.16 | $7.16 |
| 25+ | $6.71 | $6.71 |
| 50+ | $6.39 | $6.39 |
| 100+ | $6.08 | $6.08 |
| 400+ | $5.52 | $5.52 |
| 800+ | $5.25 | $5.25 |
| 1,200+ | $5.11 | $5.11 |
| 2,000+ | $4.92 | $4.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
64 positions.
1.00mm (0.039").
Surface mount.
2 rows.
Gold with 30µin (0.76µm) thickness.
10mm, 12mm, 13mm, and 15mm.
Yes, a board guide for alignment.
