| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Fastening Type | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Termination Style |

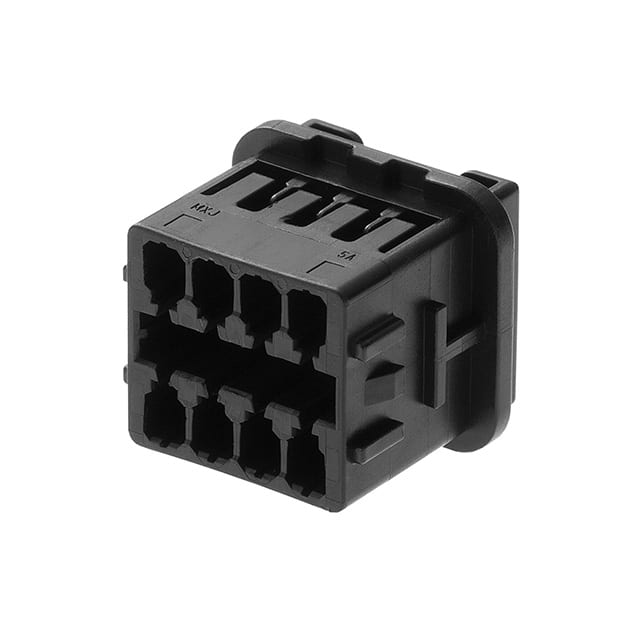

The Molex 5055960801 is a rectangular connector housing designed for use in wire-to-wire or wire-to-board applications. It is a receptacle type housing with 8 positions arranged in 2 rows, with a pitch of 2.50mm (0.098 inches). The housing accepts female socket contacts that are crimp terminated.
This housing features a free hanging (in-line) mounting style, allowing for flexible cable assembly. The locking ramp fastening mechanism ensures secure mating with compatible plug housings. The housing is molded in black material and is rated for an operating temperature range of -40°C to 105°C.
Typical applications include automotive, consumer electronics, and industrial equipment where a compact, reliable interconnect is required. The crimp termination provides a secure connection and is suitable for automated assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.59 | $0.59 |
| 10+ | $0.50 | $0.50 |
| 25+ | $0.47 | $0.47 |
| 50+ | $0.44 | $0.44 |
| 200+ | $0.40 | $0.40 |
| 250+ | $0.29 | $0.29 |
| 400+ | $0.38 | $0.38 |
| 600+ | $0.37 | $0.37 |
| 1,000+ | $0.36 | $0.36 |
| 1,500+ | $0.28 | $0.28 |
| 2,500+ | $0.27 | $0.27 |
| 2,600+ | $0.34 | $0.34 |
| 5,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions.
2.50mm (0.098 inches).
Free hanging (in-line).
Crimp termination.
-40°C to 105°C.
Locking ramp.
Black.
