| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination |

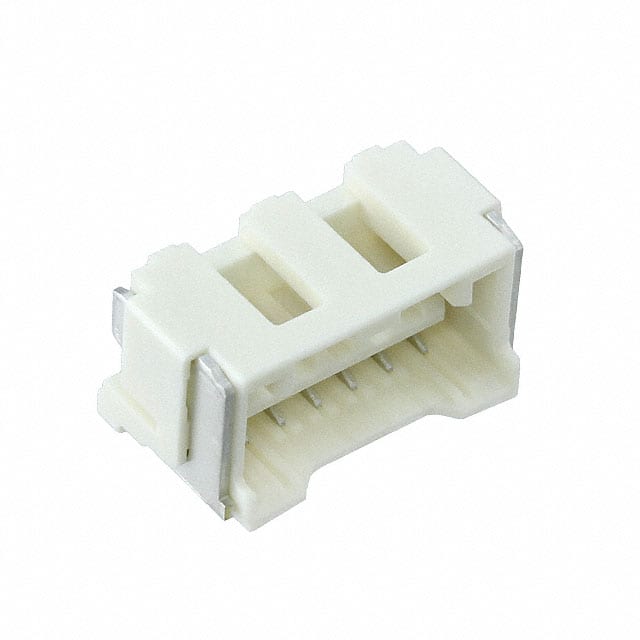

The Molex 5025840670 is a 6-position, 1-row surface mount receptacle designed for board-to-cable/wire connections. It features a 1.50mm pitch and fork contacts with tin finish, ensuring reliable electrical connections. The connector includes a latch holder for secure mating and pick-and-place capabilities for automated assembly. Solder retention features aid in reliable soldering during reflow processes. The beige insulation is rated UL94 V-0 for flammability, and the operating temperature range is -40°C to 105°C, making it suitable for a wide range of environments. The contact finish thickness is 39.4µin (1.00µm) of tin. This connector is ideal for compact electronic devices requiring a secure, low-profile interconnect.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.09 | $1.09 |
| 10+ | $0.92 | $0.92 |
| 100+ | $0.79 | $0.79 |
| 500+ | $0.66 | $0.66 |
| 900+ | $0.65 | $0.65 |
| 1,800+ | $0.61 | $0.61 |
| 4,500+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions, all loaded.
1.50mm (0.059 inches).
Surface mount (SMT) with solder termination.
-40°C to 105°C.
Tin, with thickness 39.4µin (1.00µm).
Beige.
Latch holder.
