| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
587 pcs
|
587 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination |

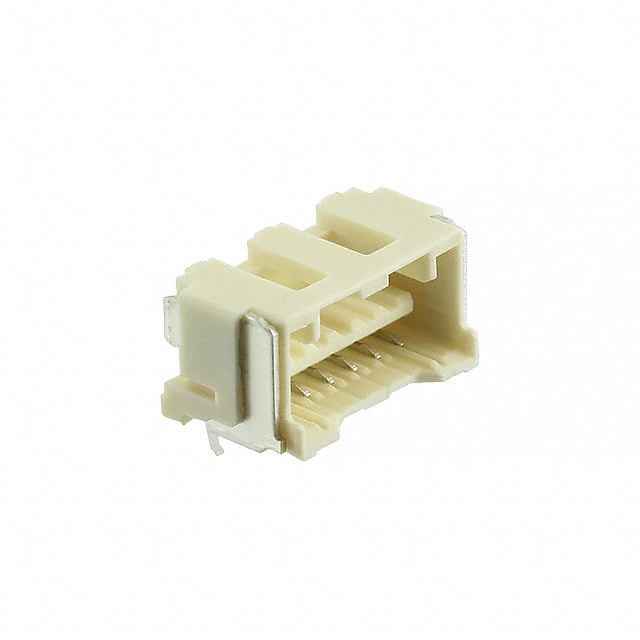

The Molex 5025840660 is a 6 position, single row receptacle connector with a 1.50mm pitch, designed for board-to-cable/wire interconnections. It features surface mount termination with solder retention for reliable attachment to the PCB. The tin contact finish has a thickness of 39.4µin (1.00µm), providing good solderability and corrosion resistance. A latch holder fastening type ensures secure mating with the corresponding header.
The connector includes pick and place features for automated assembly, and the beige insulation is rated UL94 V-0 for flammability. The insulation height is 7.25mm. It operates over a temperature range of -40°C to 105°C, making it suitable for a variety of environments. This receptacle is ideal for applications requiring a compact, low-profile connection in consumer electronics, industrial controls, and other space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.23 | $1.23 |
| 10+ | $1.06 | $1.06 |
| 25+ | $1.05 | $1.05 |
| 100+ | $0.89 | $0.89 |
| 250+ | $0.89 | $0.89 |
| 500+ | $0.81 | $0.81 |
| 900+ | $0.76 | $0.76 |
| 1,800+ | $0.71 | $0.71 |
| 4,500+ | $0.69 | $0.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
1.50mm.
Surface mount.
Tin, 39.4µin thickness.
-40°C to 105°C.
Latch holder.
7.25mm.
