| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
114 pcs
|
114 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Application | |
| Color | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| ELV | |
| Fastening Type | |
| Flammability Rating | |
| Glow-Wire Capable | |
| Halogen Free | |
| Lock to Mating Part | |
| Material - Resin | |
| Mounting Type | |
| Net Weight | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Panel Mount | |
| Pitch | |
| Polarized to Mating Part | |
| Row Spacing | |
| Stackable | |
| Tape & Reel |

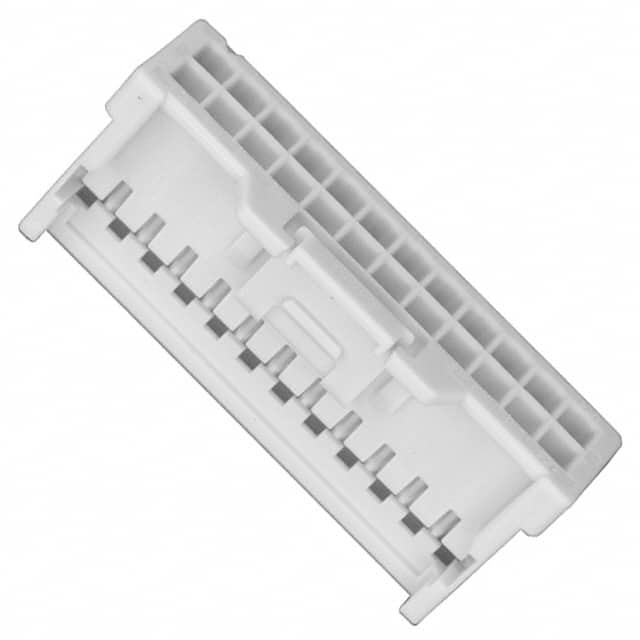

The Molex 5016462400 is a receptacle crimp housing from the iGrid Wire-to-Board Dual-Row System. It offers 24 circuits arranged in 2 rows with a 2.00mm pitch and row spacing, designed for signal wire-to-board interconnects.
The housing is made of natural nylon with a UL 94V-0 flammability rating and is low-halogen. It features a positive latch lock for secure mating and is polarized to prevent misalignment. The operating temperature range is -40°C to 105°C.
This free hanging (in-line) housing accepts crimp terminals (sold separately) and is packaged in a bag. It mates with iGrid vertical and right-angle headers (part numbers 501645, 503091, 501876, 208659).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.85 | $0.85 |
| 10+ | $0.72 | $0.72 |
| 25+ | $0.64 | $0.64 |
| 100+ | $0.58 | $0.58 |
| 200+ | $0.55 | $0.55 |
| 600+ | $0.54 | $0.54 |
| 1,000+ | $0.52 | $0.52 |
| 2,600+ | $0.49 | $0.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm.
It has 24 positions arranged in 2 rows.
It is a free hanging (in-line) mounting type.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS compliant.
The housing is made of nylon with a UL 94V-0 flammability rating.
