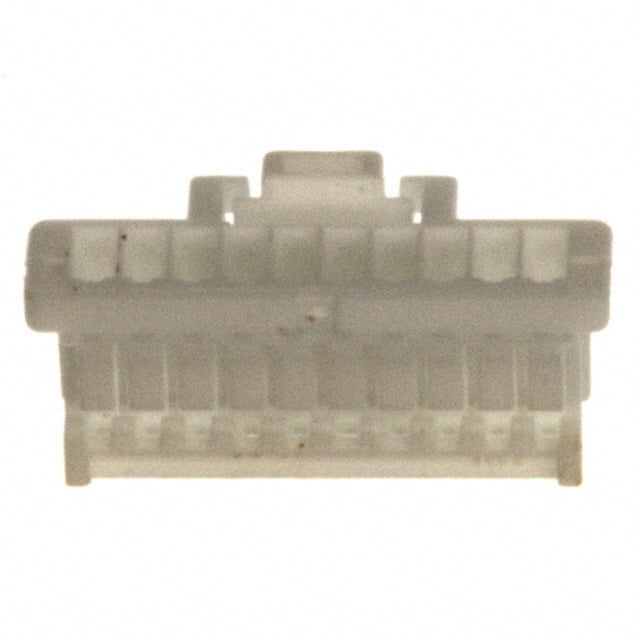

The Molex 5013301000 is a Pico-Clasp series 10-position single row receptacle housing designed for wire-to-board applications. It features a 1.00mm pitch and uses crimp termination with female socket contacts. The housing is free hanging (in-line) and secured with a locking ramp fastening mechanism.
Electrical ratings include a maximum voltage of 50V and a maximum current of 1.0A for AWG 28 and 30 wires, derating to 0.8A for AWG 32. Contact resistance is 20 milliohms maximum, with dielectric withstanding voltage of 250V AC for 1 minute and insulation resistance of 100 megaohms minimum.
The housing is made of white nylon, terminals are phosphor bronze with tin plating. It operates from -40°C to 105°C and has a minimum durability of 30 mating cycles. The part is RoHS3 compliant and packaged in a bag.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
| 10+ | $0.27 | $0.27 |
| 25+ | $0.24 | $0.24 |
| 100+ | $0.22 | $0.22 |
| 250+ | $0.21 | $0.21 |
| 1,000+ | $0.18 | $0.18 |
| 3,000+ | $0.17 | $0.17 |
| 5,000+ | $0.17 | $0.17 |
| 10,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.00mm.
It has 10 positions in a single row.
The maximum current rating is 1.0A for AWG 28 and 30 wires, and 0.8A for AWG 32 wires.
The maximum voltage rating is 50V.
It uses free hanging (in-line) mounting.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS3 compliant.
