| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Material | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Timing | |
| Current Rating (Amps) | |
| Features | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

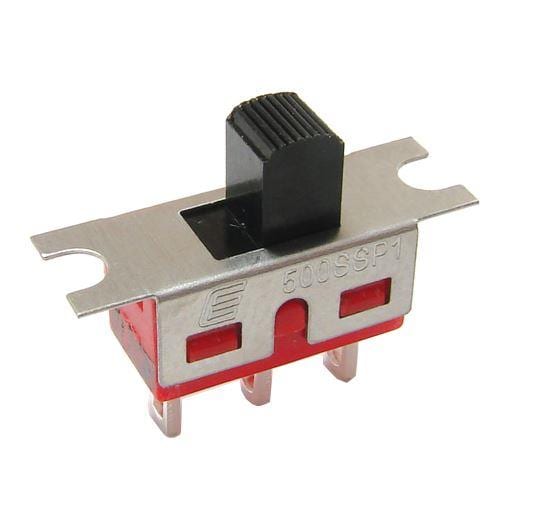

The E-Switch 500SSP3S1M6REA is a slide switch designed for various electronic applications. It features a Single Pole Double Throw (SPDT) circuit configuration, allowing for versatile switching operations. The switch is rated for a current of 0.4VA (AC/DC) and a voltage of 20V (AC/DC).
Key electrical characteristics include gold-plated copper alloy contacts, ensuring reliable conductivity. The operating temperature range for this component is from -30°C to 85°C, making it suitable for a variety of environmental conditions. The switch function is On-Off-On, providing three distinct states for control.
Mechanically, the 500SSP3S1M6REA has an actuator length of 4.72mm and a switch travel of 2.16mm. It is designed for through-hole mounting with a right-angle orientation, facilitating integration into printed circuit boards. The terminals are PC pins for secure connection. The actuator is made of Polyamide (PA), also known as Nylon, and features epoxy sealed terminals for enhanced protection.
This slide switch has an electrical and mechanical life of 30,000 cycles. It is specified with a standard package quantity of 54 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 500SSP3S1M6REA slide switch has a current rating of 0.4VA (AC/DC) and a voltage rating of 20V (AC/DC).
The operating temperature range for the 500SSP3S1M6REA slide switch is -30°C to 85°C.
The 500SSP3S1M6REA switch features an SPDT (Single Pole Double Throw) circuit.
The 500SSP3S1M6REA slide switch is designed for through-hole mounting with a right-angle orientation.
The termination style for the 500SSP3S1M6REA is PC Pin.
The electrical and mechanical life of the 500SSP3S1M6REA switch is 30,000 cycles.
