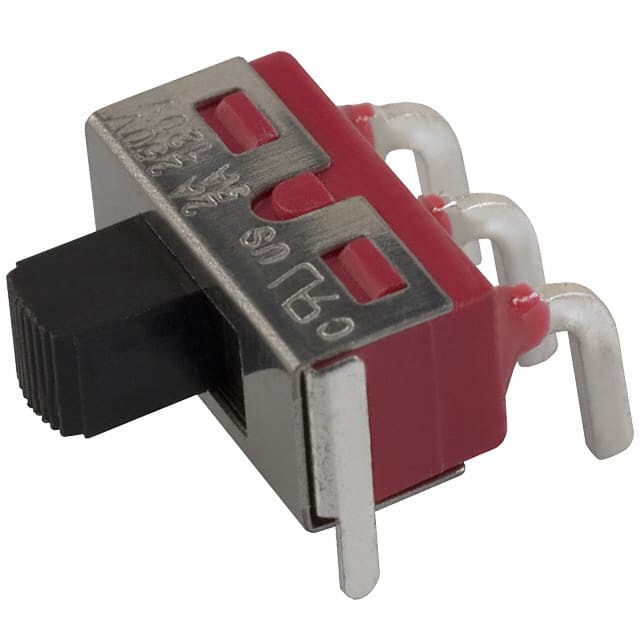

500SSP1S1M6QEA The E-Switch 500SSP1S1M6QEA is a slide switch with a SPDT circuit, rated for 5A at 120V. It features PC Pin termination and epoxy sealed terminals.
Mfr Part #:

500SSP1S1M6QEA

Available from 2 distributors
Mfr Name: E-Switch
E-Switch
The E-Switch 500SSP1S1M6QEA is a slide switch with a SPDT circuit, rated for 5A at 120V. It features PC Pin termination and epoxy sealed terminals.
✓ Total Stock: 22 pcs
$ Price Range: $0.75

500SSP1S1M6QEA Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

500SSP1S1M6QEA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Length
Actuator Type
Circuit
Contact Finish
Contact Material
Contact Timing
Current Rating (Amps)
Features
Mounting Type
Operating Temperature
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

500SSP1S1M6QEA Description

Short technical summary and product information.

The E-Switch 500SSP1S1M6QEA is a miniature slide switch from the 500 Series. This component features a Single Pole Double Throw (SPDT) circuit with an On-On function. It is rated for a current of 5A and a voltage of 120V AC/DC.



The switch has a copper alloy contact material with a silver finish. For enhanced durability and protection, it includes epoxy sealed terminals. The mounting type is Through Hole with a Right Angle orientation, and the termination style is PC Pin.



Designed for operation within a temperature range of -30°C to 85°C, this slide switch offers reliable performance in various environments. The actuator type is standard, with a specific actuator length of 4.72mm. While the contact timing is not specified, the overall construction points to a robust component for switching applications.

500SSP1S1M6QEA Quick Information

Product Type: Slide Switch
Series: 500 Series
Canonical Name: E-Switch 500 Series SPDT On-On Slide Switch
Subcategory: Slide Switch

500SSP1S1M6QEA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

500SSP1S1M6QEA Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

500SSP1S1M6QEA Features

  • SPDT circuit with On-On function.
  • Rated for 5A at 120V AC/DC.
  • Features epoxy sealed terminals.
  • Through hole, right angle mounting.
  • PC Pin termination style.

500SSP1S1M6QEA Applications

  • Suitable for general purpose switching.
  • Ideal for control panel applications.
  • Used in electronic equipment assemblies.
  • Compact design for space-constrained areas.

500SSP1S1M6QEA FAQs

5 frequently asked questions generated from this part’s specifications.
What is the circuit type of the 500SSP1S1M6QEA slide switch?

The 500SSP1S1M6QEA slide switch features an SPDT (Single Pole Double Throw) circuit.

What is the current and voltage rating for this slide switch?

This slide switch is rated for 5A and 120V.

What type of termination does the 500SSP1S1M6QEA use?

The 500SSP1S1M6QEA slide switch uses PC Pin termination.

What is the operating temperature range for the 500SSP1S1M6QEA?

The operating temperature range for this switch is -30°C to 85°C.

Does the 500SSP1S1M6QEA have epoxy sealed terminals?

Yes, the 500SSP1S1M6QEA features epoxy sealed terminals.
