| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,344 pcs
|
5344 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
694 pcs
|
694 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

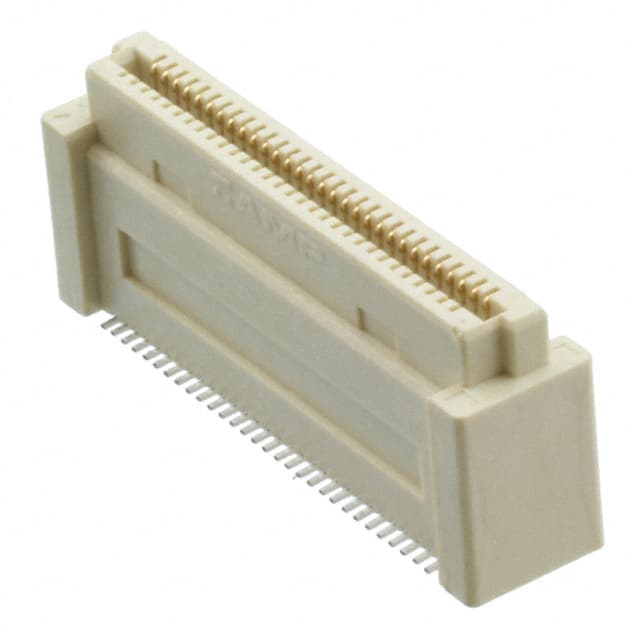

The TE Connectivity 5-5179010-2 is a 60-position receptacle connector designed for mezzanine board-to-board applications. It features a 0.80mm pitch and two rows of contacts, with a surface mount mounting type for compact PCB designs.
The connector has a gold contact finish with a thickness of 8.00µin, ensuring reliable conductivity and corrosion resistance. It includes a board guide feature to aid alignment during assembly. The mated stacking height is 13mm, suitable for stacking PCBs with a 0.463" (11.75mm) height above board.
This connector is part of the Arrays, Edge Type, Mezzanine category, ideal for high-density interconnects in compact electronic devices. The outer shroud contacts provide mechanical stability and protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.33 | $6.33 |
| 10+ | $5.61 | $5.61 |
| 25+ | $5.34 | $5.34 |
| 48+ | $5.08 | $5.08 |
| 112+ | $4.88 | $4.88 |
| 256+ | $4.61 | $4.61 |
| 512+ | $4.32 | $4.32 |
| 1,008+ | $3.76 | $3.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions.
0.80mm.
Surface mount.
Gold.
13mm.
2 rows.
Board guide.
