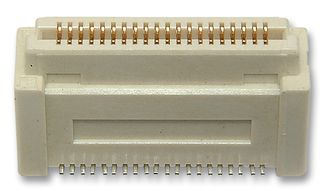

5179010-2 60 position, 2-row, 0.8mm pitch surface mount receptacle with outer shroud contacts. Gold contact finish, board guide feature, 13mm mated stacking height.
Mfr Part #:

5179010-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
60 position, 2-row, 0.8mm pitch surface mount receptacle with outer shroud contacts. Gold contact finish, board guide feature, 13mm mated stacking height.
✓ Total Stock: 500 pcs
$ Price Range: $4.82 - $8.15

5179010-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tokyo Device ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

5179010-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Features
Halogen Free
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
SVHC Present
Tape & Reel
View Similar Products (0)

5179010-2 Description

Short technical summary and product information.

The TE Connectivity 5179010-2 is a 60-position, 2-row receptacle with outer shroud contacts designed for board-to-board mezzanine applications. It features a 0.8mm pitch and surface mount termination, making it suitable for high-density interconnects. The connector has a height above board of 11.75mm and supports a mated stacking height of 13mm. Contacts are gold plated with 8µin thickness for reliable signal integrity. The housing includes a board guide feature to assist alignment during assembly. This connector is RoHS, REACH, and low halogen compliant, and is reflow solder capable to 260°C. It is commonly used in applications requiring compact, high-density connections between parallel PCBs.

5179010-2 Quick Information

Product Type: Board-to-Board Connector
Series: 5179010
Canonical Name: TE Connectivity 5179010-2 60 Position 0.8mm Pitch Surface Mount Receptacle with Outer Shroud Contacts
Subcategory: Mezzanine Connector

5179010-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Does not contain REACH SVHC (ECHA Candidate List Jan 2023)

5179010-2 Estimated Pricing

Qty Low High
1+ $8.15 $8.15
10+ $7.38 $7.38
25+ $6.97 $6.97
48+ $6.77 $6.77
112+ $6.46 $6.46
256+ $5.78 $5.78
512+ $5.44 $5.44
1,008+ $4.82 $4.82

Estimated market price range - modelled values for guidance only, not live distributor offers.

5179010-2 Features

  • 60 positions in 2 rows with 0.8mm pitch.
  • Surface mount termination for compact designs.
  • Gold contact finish with 8µin thickness.
  • Board guide for easy alignment.
  • 13mm mated stacking height.

5179010-2 Applications

  • Used in mezzanine board-to-board connections.
  • Ideal for high-density electronic assemblies.
  • Suitable for telecommunications equipment.
  • Common in industrial control systems.

5179010-2 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 5179010-2 have?

60 positions in 2 rows.

What is the pitch of this connector?

0.80mm (0.031 inches).

What is the mounting type?

Surface mount.

What is the contact finish?

Gold with 8µin (0.203µm) thickness.

What is the mated stacking height?

13mm.

Does it have a board guide?

Yes, it includes a board guide feature.

Is it RoHS compliant?

Yes, compliant with EU RoHS Directive 2011/65/EU including 2015/863/EU.
