| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 2313 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Barrier Type | |
| Bottom Termination | |
| Color | |
| Current Rating (Amps) | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Number of Circuits | |
| Number of Rows | |
| Number of Wire Entries | |
| Pitch | |
| SVHC Present | |
| Terminal Block Type | |
| Top Termination | |
| Voltage Rating | |
| Wire Gauge |

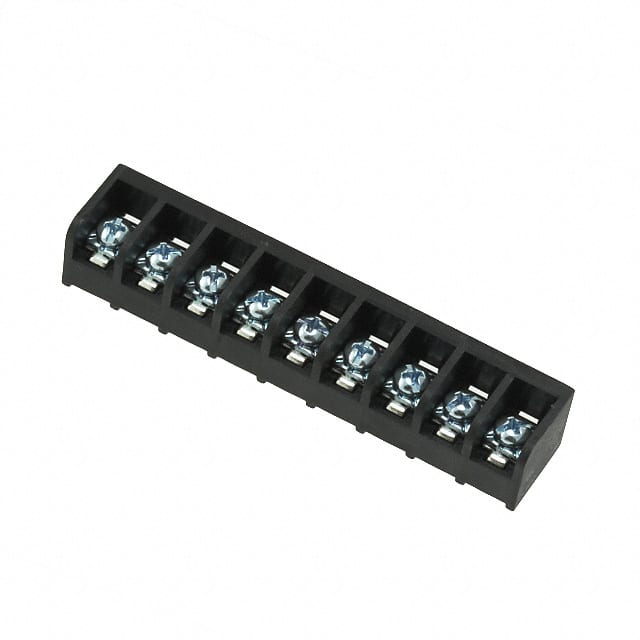

The TE Connectivity 4PCV-09-006 is a 9-circuit barrier block designed for reliable wire termination in power distribution and control applications. It features a single row of circuits with a pitch of 8.26mm (0.325 inches), accommodating wire gauges from 12 to 22 AWG. The block is rated for 20A continuous current and 150V voltage, making it suitable for moderate power requirements.
The top termination uses screws with captive plates for secure wire clamping, while the bottom termination is via PC pins for through-hole PCB mounting. The 3-wall (tri) barrier design provides enhanced isolation between circuits. The housing is black, indicating a standard industrial color.
This barrier block is commonly used in industrial control panels, HVAC equipment, and appliance wiring where reliable screw termination and compact spacing are needed. The 8.26mm pitch balances density with ease of wiring.
| Qty | Low | High |
|---|---|---|
| 675+ | $7.57 | $7.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 circuits.
8.26mm (0.325 inches).
20A.
150V.
12-22 AWG.
Screws with captive plate on top, PC pin on bottom.
3 wall (tri) barrier.
