| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72 pcs
|
72 pcs | On Request | 1 | On Request | On Request | 0943 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrier Type | |
| Bottom Termination | |
| Color | |
| Current Rating | |
| Current Rating (Amps) | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Number of Rows | |
| Number of Wire Entries | |
| Pitch | |
| Terminal Block Type | |
| Termination Style | |
| Top Termination | |
| Voltage Rating | |
| Wire Gauge |

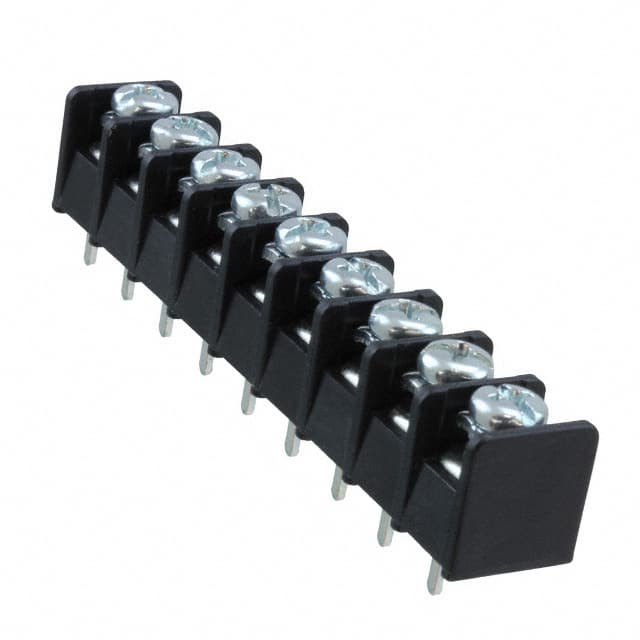

The TE Connectivity 4DB-P108-09 is a 9-circuit barrier block designed for reliable wire-to-board connections. It is rated for 20A at 150V and accepts wire gauges from 12 to 22 AWG. The block features a 0.325" (8.26mm) pitch and a single row of circuits.
Termination is provided by screws with captive plates on the top and PC pins on the bottom, enabling through-hole mounting. The dual wall (2 wall) barrier design enhances isolation between circuits. The housing is black and the block is RoHS3 compliant (unverified).
This barrier block is suitable for power distribution and industrial control applications where secure, high-current connections are required. The through-hole mounting style allows for robust attachment to PCBs.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.87 | $6.87 |
| 10+ | $4.87 | $4.87 |
| 24+ | $4.34 | $4.34 |
| 48+ | $3.91 | $3.91 |
| 120+ | $3.77 | $3.77 |
| 264+ | $3.40 | $3.40 |
| 504+ | $3.14 | $3.14 |
| 1,008+ | $2.98 | $2.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 circuits.
8.26mm (0.325").
20A.
150V.
Through hole.
12-22 AWG.
Screw with captive plate (top) and PC pin (bottom).
