| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,020 pcs
|
10020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Height | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| SVHC Present | |
| Static Pressure | |
| Storage Temperature | |
| Termination | |
| Termination Style | |
| Voltage | |
| Weight | |
| Width |

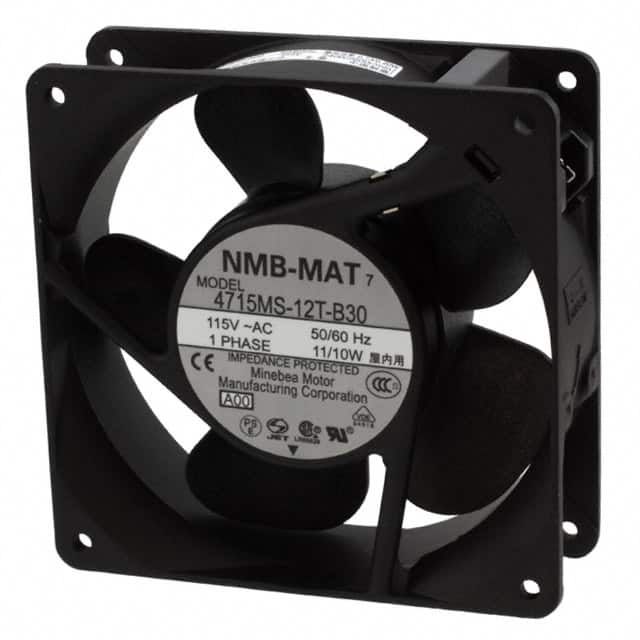

The 4715MS-12T-B30-A00 is a 115 VAC tubeaxial fan from NMB Technologies. It measures 119mm x 119mm with a 38mm thickness and uses a flange mount. The fan operates at both 50 Hz and 60 Hz, delivering up to 88.2 CFM (2.5 m³/min) at 60 Hz and 81.0 CFM at 50 Hz. The motor is a shaded pole induction type with impedance protection, ensuring reliable operation. The ball bearing system provides a long expected life of 100,000 hours at 25°C. The casing is aluminum with black painting, and the impeller is plastic rated UL94V-0. The fan has a noise level of 34 dB at 50 Hz and 37 dB at 60 Hz. It is rated for an operating temperature range of -10°C to +70°C and storage from -40°C to +70°C. Insulation resistance is 100 MΩ at DC500V, and dielectric withstand voltage is AC 1800V for 3 seconds. The fan is approved by CE, CSA, TUV, UL, and VDE.
115 VAC, supporting both 50 Hz and 60 Hz.
119mm x 119mm square, 38mm thickness, flange mount.
-10°C to +70°C.
RoHS3 Compliant, but unverified.
88.2 CFM (2.5 m³/min) at 60 Hz, and 81.0 CFM (2.3 m³/min) at 50 Hz.
34.0 dB at 50 Hz and 37.0 dB at 60 Hz.
100,000 hours at 25°C with a 10% failure rate.
