450301014042 The Würth Elektronik 450301014042 is a mini slide switch with an SPDT circuit. It is rated for 500mA at 12V DC and operates within a temperature range of -40°C to 85°C.
Mfr Part #:

450301014042

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The Würth Elektronik 450301014042 is a mini slide switch with an SPDT circuit. It is rated for 500mA at 12V DC and operates within a temperature range of -40°C to 85°C.
✓ Total Stock: 350 pcs
$ Price Range: $0.75

450301014042 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
227 pcs
On Request
227 pcs On Request 1 On Request On Request N/A On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
123 pcs
On Request
123 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

450301014042 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Color
Actuator Length
Actuator Material
Actuator Type
Circuit
Contact Finish
Contact Form
Contact Material
Contact Plating
Contact Timing
Current Rating (Amps)
Dimensions
Features
Frame Color
Insulation Resistance
Mounting Type
Operating Temperature
Switch Function
Termination Style
Voltage Rating
Withstanding Voltage
View Similar Products (0)

450301014042 Description

Short technical summary and product information.

This Würth Elektronik 450301014042 is a compact slide switch designed for general electronic equipment. It features an SPDT (Single Pole Double Throw) switching function with an On-On configuration.



The switch is rated for a maximum current of 500mA and a voltage of 12V DC. It has a low initial contact resistance of 30mΩ maximum, which increases to 200mΩ maximum after its electrical life of 2000 steps. The insulation resistance is a minimum of 10000MΩ at 500V DC.



Constructed with a PA66 actuator and frame, both rated UL94 V-0, and copper alloy contacts with gold plating, this switch is built for reliability. The operating temperature range is from -40°C to +85°C. It is designed for PCB mounting with a through-hole termination style.

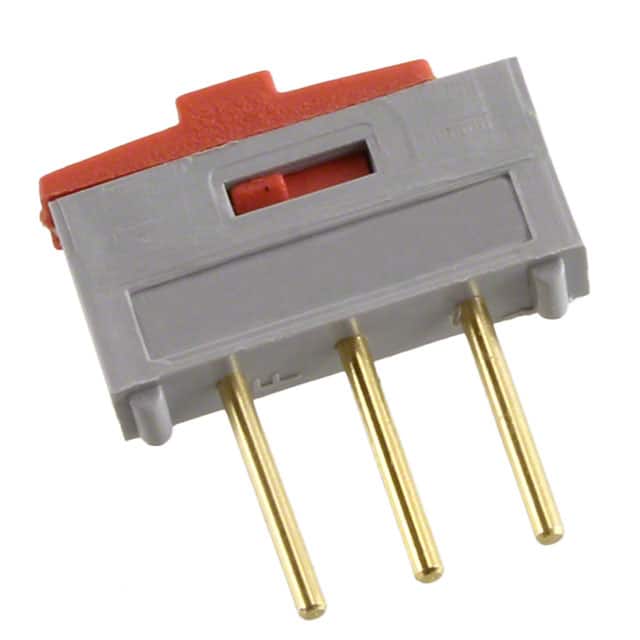

The switch has a red actuator and a grey frame. Its dimensions are 4.5mm x 1.4mm x 0.5mm x 5mm. The contact plating is gold, and the terminal material is also copper alloy with gold plating.

450301014042 Quick Information

Product Type: Slide Switch
Series: WS-SLTV
Canonical Name: Würth Elektronik WS-SLTV Mini Slide Switch
Subcategory: Slide Switch

450301014042 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

450301014042 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

450301014042 Features

  • SPDT switching function with On-On operation.
  • Rated for 500mA current and 12V DC voltage.
  • Gold plated copper alloy contacts for durability.
  • Operates reliably between -40°C and 85°C.
  • Through-hole mounting with PA66 UL94 V-0 materials.

450301014042 Applications

  • Used in electronic control panels
  • Suitable for consumer appliances
  • Ideal for industrial switching applications
  • Designed for reliable on-off operation

450301014042 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the rated voltage of the switch?

The switch is rated for 12 V DC.

What is the contact form of this switch?

The contact form is SPDT.

What is the maximum rated current for this switch?

The maximum rated current is 500 mA.

What are the operating temperature limits?

The operating temperature range is -40°C to +85°C.

Is this switch RoHS compliant?

Yes, it is RoHS3 compliant.
