| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

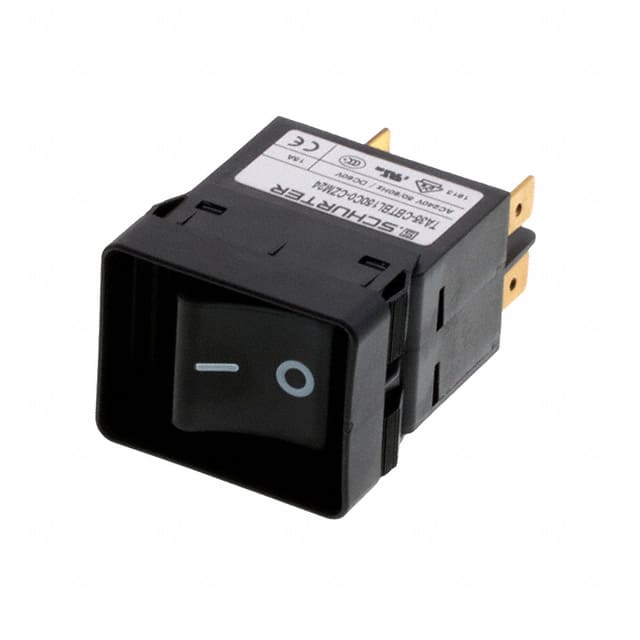

This Schurter Inc. 4435.0336 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It offers a rated current of 15A and operates at up to 240VAC and 60VDC.
The breaker features a thermal tripping mechanism and a rocker actuation type, suitable for panel mounting. Its technical specifications include a conditional short circuit capacity of 2 kA at 240 VAC and an operating temperature range of -30°C to 60°C.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. It provides essential protection against overloads and short circuits in various industrial and commercial settings.
240VAC (IEC) and 277VAC (UL/CSA) for AC, and 60VDC for DC.
15A.
-30°C to 60°C.
Panel mount.
Thermal-magnetic.
50,000 switching cycles.
>2.5 kV at 50 Hz and >4 kV impulse (1.2/50 μs).
