| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

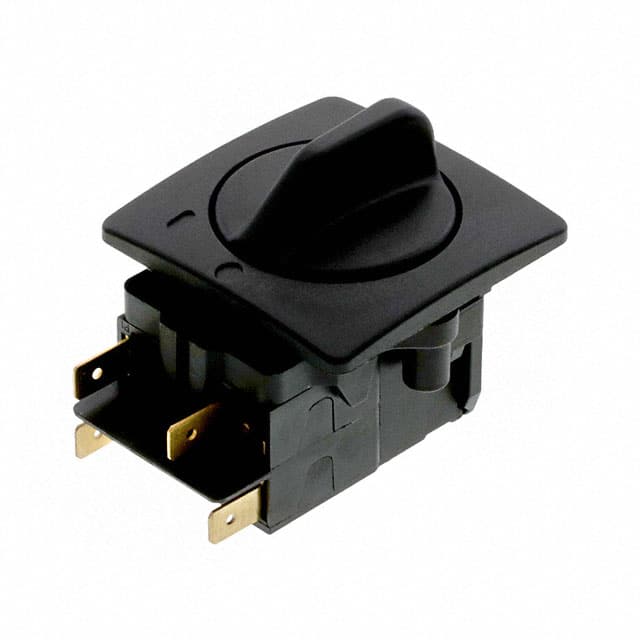

The Schurter Inc. 4435.0325 is a 2-pole thermal circuit breaker designed for general industrial use. It features a rotary knob for actuation and a positively trip-free release mechanism, operating according to IEC S-type standards. This breaker is suitable for panel mounting and offers a rated voltage of 240 VAC (IEC) or 277 VAC (UL/CSA) and 60 VDC.
Key electrical specifications include a rated current range of 0.05 to 20 A and a conditional short circuit capacity of 2 kA at 240 VAC. The device has a mechanical lifetime of 50,000 switching cycles and specific overload trip characteristics. It operates within a temperature range of -30 °C to 60 °C and provides an IP40 degree of protection on the front side.
Applications for this circuit breaker include power tools, industrial appliances, construction equipment, cleaning equipment, and commercial/household kitchen appliances. It is available without a bezel/knob for customized front panel designs.
The circuit breaker is rated for 240 VAC (IEC) and 277 VAC (UL/CSA), as well as 60 VDC.
The allowable operating temperature range is -30°C to 60°C.
The breaker uses a thermal tripping mechanism.
It is a panel mount device.
The rated current range is 0.05 to 20 A AC.
The front side is rated IP40 according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles under both AC and DC conditions.
