| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

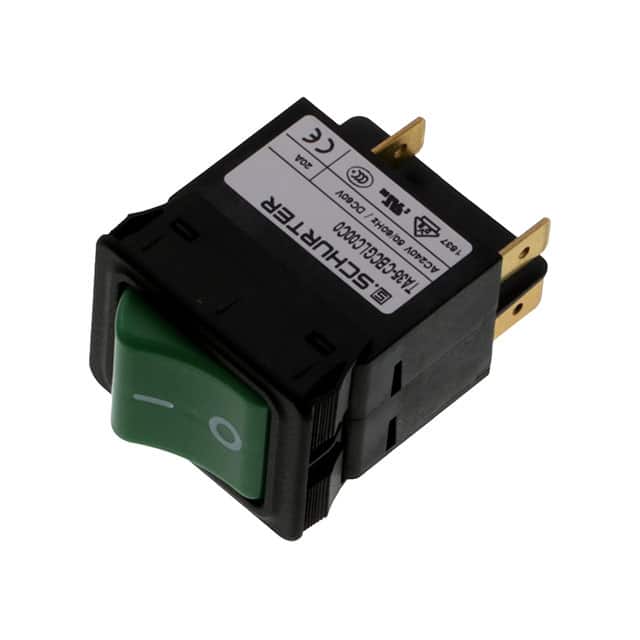

The Schurter Inc. 4435.0263 is a 2-pole thermal circuit breaker designed for equipment protection. It features rocker actuation and a positively trip-free release mechanism, operating according to IEC S-type standards.
This circuit breaker offers a rated voltage of 240 VAC and 60 VDC, with a current range of 0.05 to 20 A AC. It includes thermal and thermal-magnetic tripping types, providing robust short-circuit protection. The device has a conditional short circuit capacity of 2 kA at 240 VAC and a degree of protection of IP40 on the front side.
With a mechanical lifetime of 50,000 switching cycles and electrical lifetimes of 50,000 cycles for both AC and DC, the 4435.0263 is built for durability. It operates within a temperature range of -30 °C to 60 °C and is resistant to vibration and shock.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, construction equipment, cleaning equipment, and commercial kitchen appliances. Its high configurability in terms of rocker colors and lettering makes it suitable for various industrial power and lighting array needs.
The Schurter 4435.0263 is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 60 VDC.
The allowable operating temperature range is -30 °C to 60 °C.
The front side has IP40 protection according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
The dielectric strength is greater than 2.5 kV at 50 Hz.
It uses panel mount with a rocker actuator.
