| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

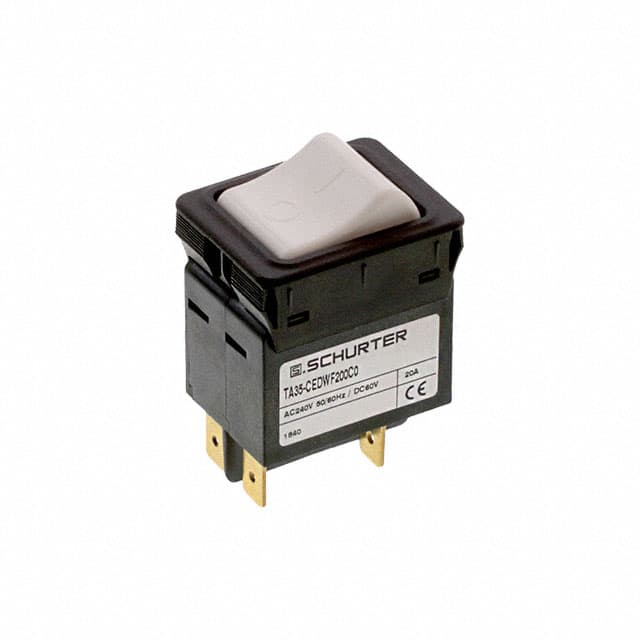

The Schurter Inc. 4435.0151 is a 2-pole thermal circuit breaker from the TA35 series, suitable for equipment protection. It offers a rated current range of 0.05 to 20A AC and a rated voltage of 240 VAC IEC or 277 VAC UL/CSA, with a DC rating of 60 VDC.
This circuit breaker features a thermal tripping type and a rocker actuator. It has a mechanical lifetime of 50,000 switching cycles and an electrical lifetime of 50,000 cycles under specified AC and DC conditions. The operating temperature range is -30°C to 60°C.
Designed for panel mounting, the 4435.0151 provides a degree of protection of IP40 on the front side. Its conditional short circuit capacity is 2 kA at 240 VAC. Applications include power tools, medical and laboratory equipment, industrial appliances, and more.
The Schurter 4435.0151 is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 60 VDC.
The operating temperature range is -30 to 60 °C.
The rated current range is 0.05 to 20 A AC.
It uses a rocker actuator.
The mounting type is panel mount.
The front side has an IP40 degree of protection.
