| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

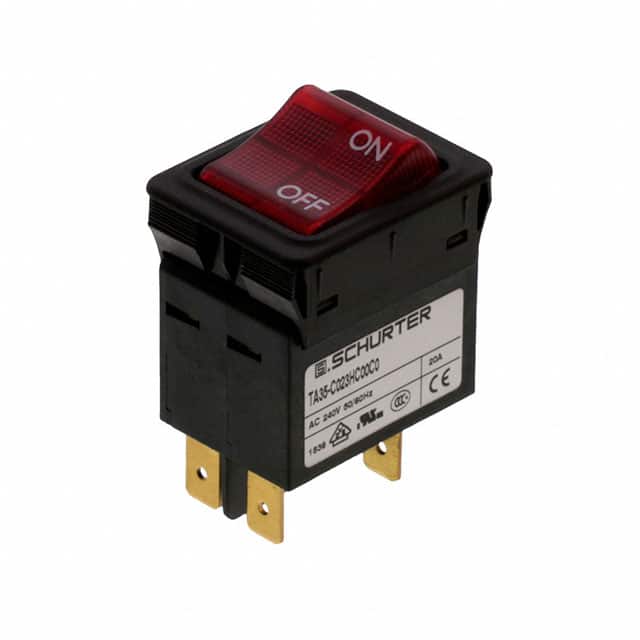

The Schurter Inc. 4435.0248 is a 2-pole thermal circuit breaker featuring a rocker actuation type and panel mount. It operates with a rated voltage of 240 VAC (IEC) or 277 VAC (UL/CSA) and 60 VDC. The rated current range is from 0.05 A to 20 A. This circuit breaker has a conditional short circuit capacity of 2 kA at 240 VAC.
Designed for reliability, it offers a mechanical lifetime of 50,000 switching cycles and specific AC and DC lifetimes under load conditions. The operating temperature range is -30 °C to 60 °C, with a storage temperature range of -40 °C to 60 °C. It also meets vibration and shock resistance standards.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. It provides thermal tripping and is suitable for short-circuit protection.
The Schurter 4435.0248 is rated for 240 VAC (IEC) and 277 VAC (UL/CSA), as well as 60 VDC.
The allowable operating temperature range is -30 °C to 60 °C.
The rated current range is 0.05 to 20 A AC, with magnetic tripping up to 16 A.
The front side has a degree of protection of IP40 according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
The mounting type is panel mount.
