| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

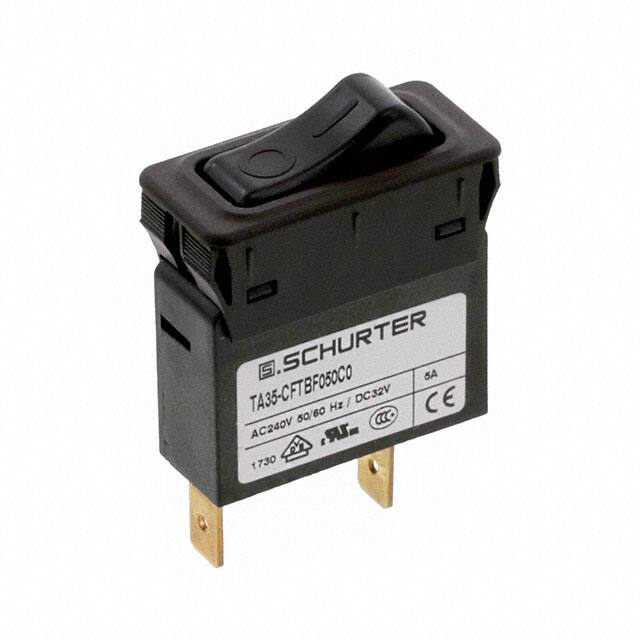

The Schurter Inc. TA35 Rocker 1Pole series circuit breaker is a thermal type designed for equipment protection. This 1-pole breaker features a rocker actuation and a panel mount design.
Key electrical specifications include a rated voltage of 240 VAC (IEC) and 277 VAC (UL/CSA), with a DC rating of 32 VDC. The rated current range is from 0.05 A to 20 A, and this specific model is rated at 5A. It offers a conditional short circuit capacity of 2 kA at 240 VAC.
Environmental and mechanical specifications include an operating temperature range of -30 °C to 60 °C and a degree of protection of IP40 on the front side. The breaker has a mechanical lifetime of 50,000 switching cycles and meets various approval standards including IEC 60934, UL 1077, and CSA C22.2 No. 235.
The rated AC voltage is 240 VAC per IEC and 277 VAC per UL/CSA. The rated DC voltage is 32 VDC.
The continuous current rating is 5A. The breaker can handle an AC current range of 0.05 to 20 A.
The allowable operating temperature range is -30°C to 60°C.
It is certified to CSA C22.2 No 235, EN 60934, GB 17701, IEC 60934, and UL1077.
The mechanical lifetime is a minimum of 50,000 switching cycles.
