| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

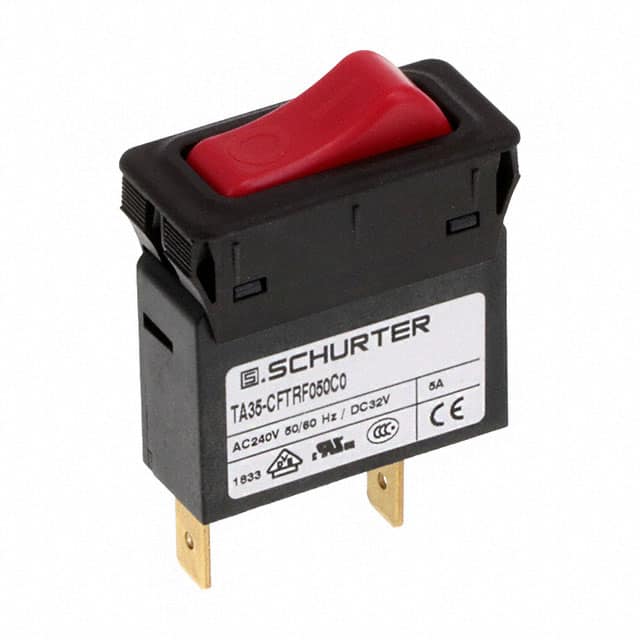

This Schurter Inc. 4435.0006 is a 1-pole thermal circuit breaker with a rocker actuation type, suitable for panel mounting. It offers a rated AC voltage of 240 VAC and a rated DC voltage of 32 VDC, with a current rating range from 0.05 to 20 A. The device has a conditional short circuit capacity of 2 kA at 240 VAC.
Environmental specifications include an operating temperature range of -30 °C to 60 °C and a degree of protection of IP40 on the front side. The circuit breaker has a mechanical lifetime of 50,000 switching cycles and specific AC and DC electrical lifetimes. It meets various approval standards including UL1077 and IEC 60934.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its thermal tripping mechanism and positively trip-free release ensure reliable operation.
The rated AC voltage is 240 VAC (IEC) and 277 VAC (UL/CSA).
The rated DC voltage is 32 VDC.
The rated current range AC is 0.05 - 20 A.
The allowable operation temperature is -30 °C to 60 °C.
The tripping type is Thermal.
The actuation type is Rocker.
This circuit breaker has 1 pole.
