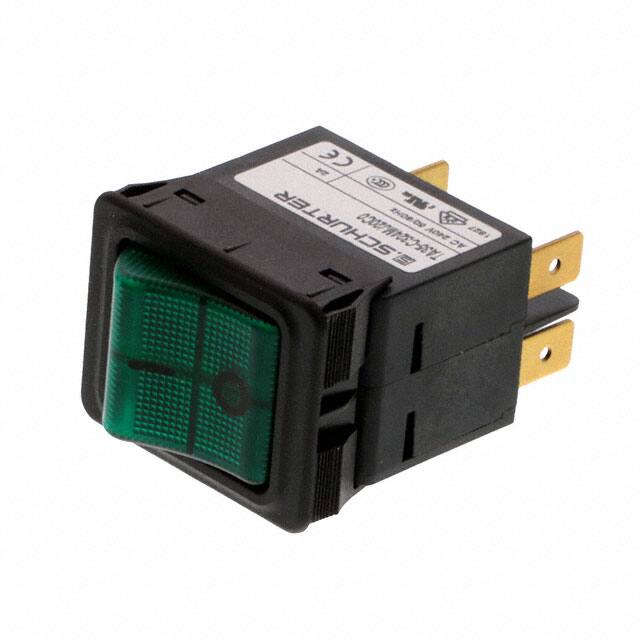

This Schurter Inc. 4435.0115 is a 2-pole thermal circuit breaker suitable for various applications. It offers a rated AC voltage of 240 VAC and a rated DC voltage of 60 VDC, with a current rating range of 0.05 to 20 A.
The breaker is designed for panel mounting and features a rocker actuation type. It has a mechanical lifetime of 50,000 switching cycles and specific overload trip capabilities according to IEC and UL/CSA standards. The operating temperature range is from -30 °C to 60 °C.
Key electrical specifications include a dielectric strength of over 2.5 kV (50 Hz) and over 4 kV (1.2/50 μs impulse), with an insulation resistance greater than 100 MΩ at 500 VDC. The front side offers IP40 protection.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The rated AC voltage is 240 VAC (IEC) and 277 VAC (UL/CSA).
The rated DC voltage is 60 VDC.
The rated current range is 0.05 to 20 A AC, with magnetic tripping up to 16 A.
The allowable operating temperature is -30 °C to 60 °C.
The mechanical lifetime is 50,000 switching cycles.
This circuit breaker uses Thermal and Thermal-Magnetic tripping types.
The mounting type is Panel Mount.
