| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

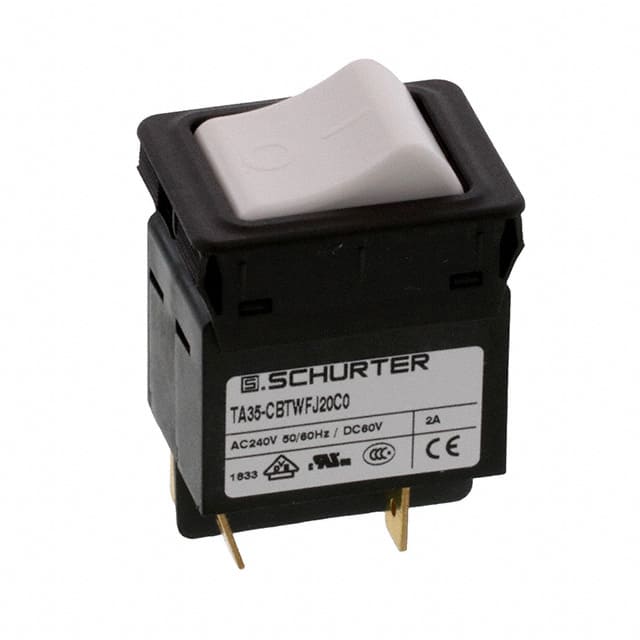

The Schurter Inc. 4435.0076 is a thermal circuit breaker with a 2-pole configuration and a rocker actuator, suitable for panel mounting. It offers a current rating of 2A and can handle AC voltages up to 240V and DC voltages up to 60V.
This circuit breaker is designed for thermal tripping and provides short-circuit protection. It has a mechanical lifetime of 50,000 switching cycles and meets specific overload trip requirements for both IEC and UL/CSA standards. The operating temperature range is from -30°C to 60°C.
Key technical specifications include a dielectric strength of over 2.5 kV at 50 Hz and over 4 kV impulse, with an insulation resistance greater than 100 MΩ at 500 VDC. The degree of protection on the front side is IP40.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
It is rated for 240VAC and 60VDC.
-30°C to 60°C.
Thermal.
50,000 switching cycles.
Panel mount.
IP40 on the front side.
Greater than 2.5kV at 50Hz and greater than 4kV impulse.
