| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

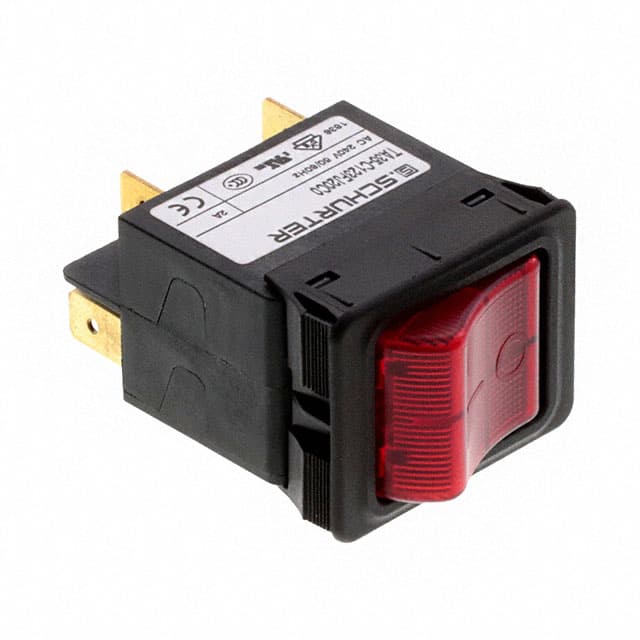

This Schurter Inc. 4435.0268 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It offers a rated current of 2A and a voltage rating of 240VAC, with a DC rating of 60VDC. The breaker features a thermal tripping type and a rocker actuation.
With a panel mount design, this circuit breaker is suitable for various industrial applications. It has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30°C to 60°C. The device provides a conditional short circuit capacity of 2 kA at 240 VAC and meets IP40 degree of protection on the front side.
Key electrical specifications include a dielectric strength greater than 2.5 kV and an insulation resistance greater than 100 MΩ at 500 VDC. The circuit breaker is designed for robustness, with vibration resistance up to 10 G and shock resistance of 30 G.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and equipment for construction. Its configurability options, such as rocker colors and lettering, make it adaptable to specific design needs.
240 VAC (IEC), 277 VAC (UL/CSA), and 60 VDC.
-30 °C to 60 °C.
2 A.
Thermal-magnetic.
50,000 switching cycles.
Yes, red illumination at 240 V nominal.
Panel mount.
