| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

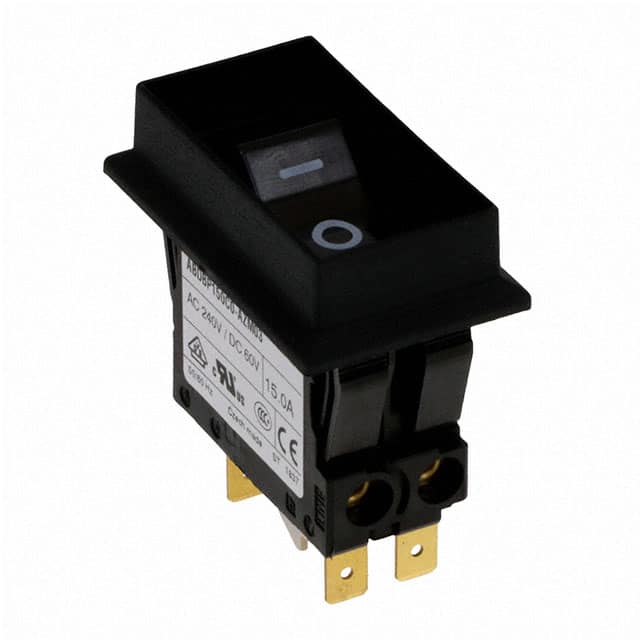

This Schurter Inc. 4430.2887 is a thermal circuit breaker with a 2-pole configuration, suitable for various industrial applications. It offers a rated voltage of 240 VAC and 60 VDC, with a current rating range of 0.05 to 20 A, specifically at 15A for this model.
The breaker is designed for panel mounting and features a rocker actuation type. It has a conditional short circuit capacity of 1 kA at 240 VAC and a short circuit capacity of 300A. The device operates within a temperature range of -10 °C to 55 °C and has a mechanical lifetime of 50,000 switching cycles.
Environmental specifications include a degree of protection of IP40 on the front side, which can be increased to IP54 with a factory-mounted protection cover. The circuit breaker also meets specific dielectric strength and insulation resistance requirements, ensuring reliable operation in demanding environments.
The rated voltage is 240 VAC and 60 VDC.
The current rating is 15A.
This circuit breaker has 2 poles.
The allowable operating temperature is -10 °C to 55 °C.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
