| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

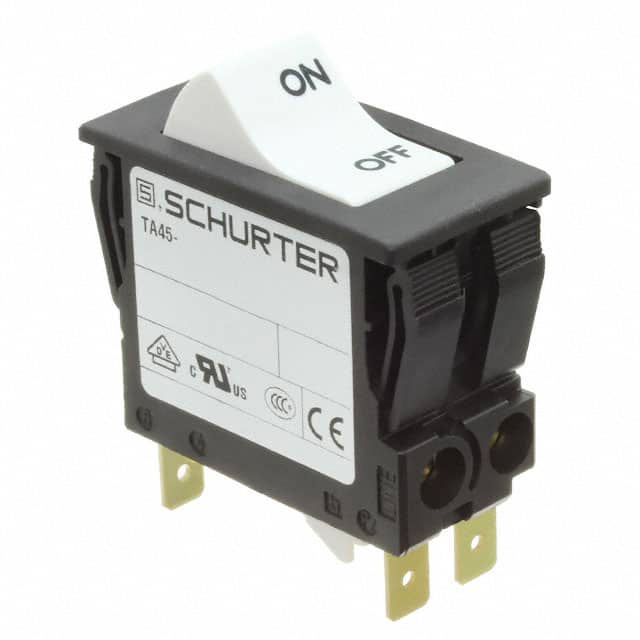

This Schurter Inc. 4430.0904 is a thermal circuit breaker with a 2-pole configuration, suitable for panel mounting applications. It offers a rated current of 16A and can operate at up to 240 VAC or 60 VDC.
The device provides thermal overload protection with a positively trip-free release mechanism. Key specifications include a conditional short circuit capacity of 1 kA at 240 VAC and a short circuit capacity (Icn) of 300A at 240 VAC for currents 3A or greater. It has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -10 °C to 55 °C.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, and equipment for construction and cleaning. The rocker actuation type and panel mount design facilitate integration into various systems. The ingress protection rating is IP40 on the front side, or IP54 with a factory-mounted protection cover.
The rated voltage is 240VAC and 60VDC.
The allowable operating temperature range is -10°C to 55°C.
The current rating is 16A.
The degree of protection is IP40, and IP54 with a factory-mounted protection cover.
The mechanical lifetime is 50,000 switching cycles.
The tripping type is thermal.
The mounting type is panel mount.
